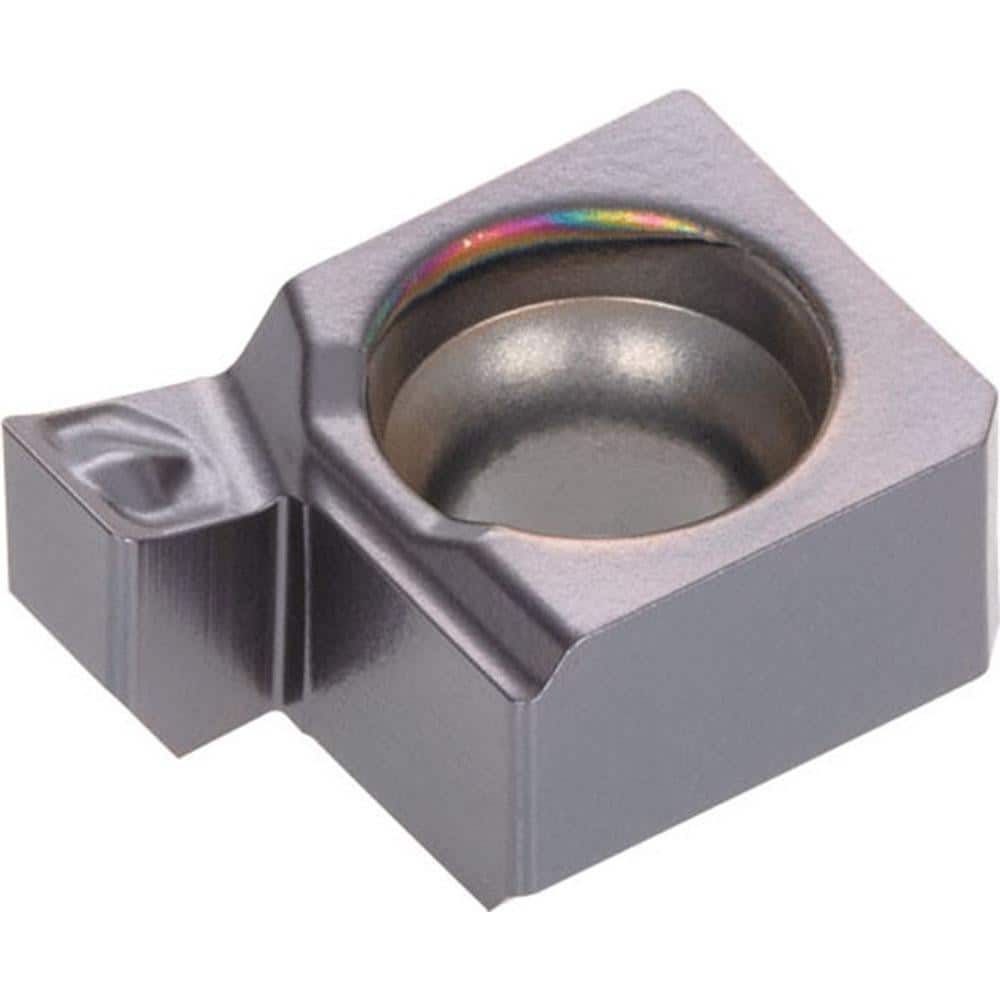

Multi-Directional Turning Insert: AH7025, Solid Carbide
Item #: 19877448
Brand: Tungaloy
Model #: 6777045
Product Specifications
| Insert Style | GMR |
| Insert Size Code | 9 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH7025 |
| Maximum Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Insert Hand | Right |
| Chipbreaker | MR |
| Series | GMR |
| Coating Process | PVD |
| Full Radius Insert | No |
| Primary Workpiece Material | Superalloy; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Insert Length (Decimal Inch) | 0.5100 |
| Single Or Double End | Single |
| Coating/Finish | Coated |
