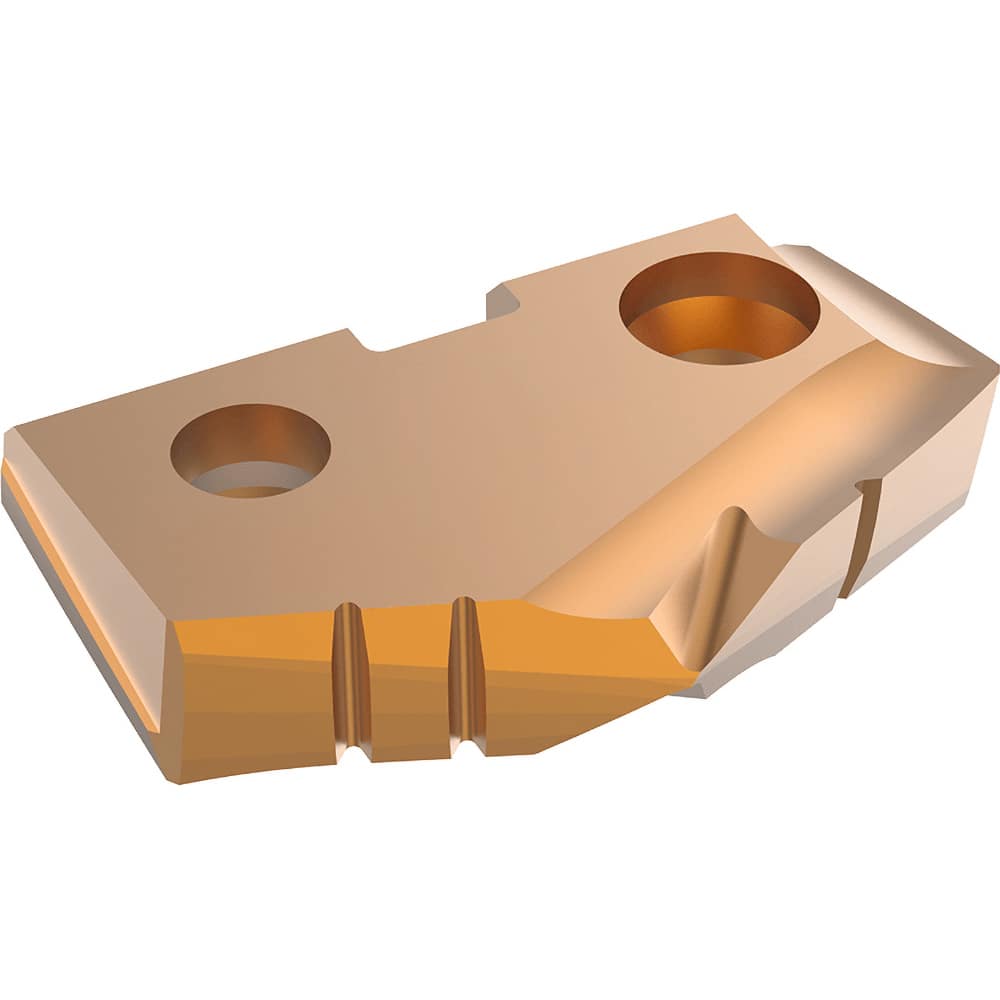

Spade Drill Insert: 1.1024″ Dia, Series 2, 132 ° Point AM300 Finish, Series 2
Item #: 19892561
Brand: Allied Machine and Engineering
Model #: 4C12P-28
Product Specifications
| Diameter (mm) | 28.00 |
| Diameter (Decimal Inch) | 1.1024 |
| Series Code/Seat Size | 2 |
| Point Angle | 132 |
| Included Angle Degree | 132 |
| Manufacturer Grade | C1 (K35) |
| Spade Drill Insert Diameter Range (mm) | 25.00 to 30.00 |
| Series | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Coating/Finish | AM300 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
