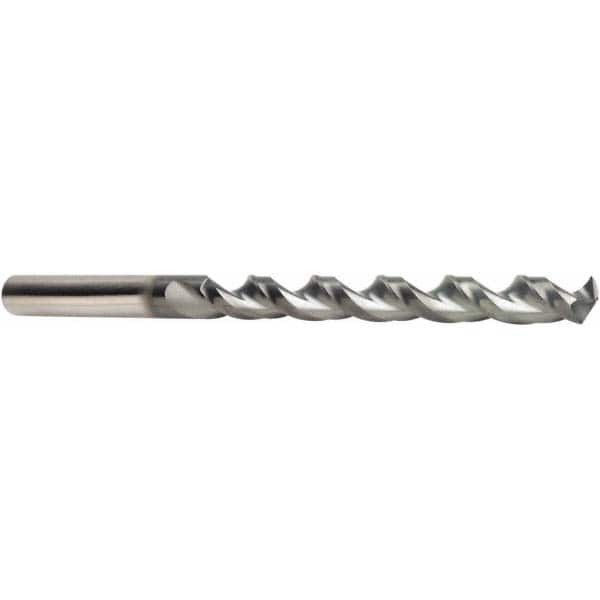

DORMER - 0.248" 130° Spiral Flute Cobalt Taper Length Drill Bit
Item #: 78983426
Brand: DORMER
Model #: 0060995
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Aluminum chromium nitride (AlCrN) has higher heat resistance than AlTiN. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.2480 |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | AlCrN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | No |
| Point Type | Special Point Type |
| Flute Length (mm) | 97.00 |
| Overall Length (mm) | 148.00 |
| Spiral Type | Fast Spiral |
| Shank Diameter (Decimal Inch) | 0.2481 |
| Web Configuration | Parallel |
| Web Thinning | Web-Thinned |
| Material Grade | M42 |
| Series/List | A941 |
