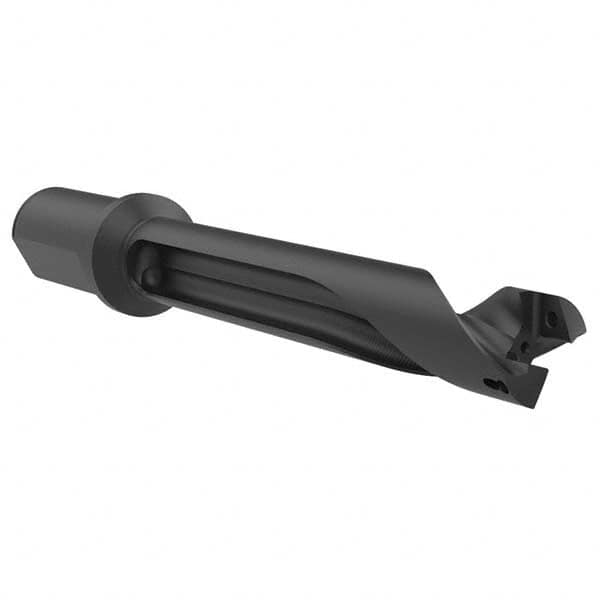

Allied Machine and Engineering - 1.1417" to 1.2597" Diam 3xD 3-25/32" Max Depth Straight Flute Spade Drill
Item #: 55815070
Brand: Allied Machine and Engineering
Model #: ST03290-125F
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 29 |
| Minimum Drill Diameter (Decimal Inch) | 1.1417 |
| Maximum Drill Diameter (Decimal Inch) | 1.2597 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 1-1/4 |
| Overall Length (Inch) | 7-21/32 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Inch) | 3-25/32 |
| Flute Type | Straight Flute |
| Body Length (Inch) | 5-3/8 |
| Shank Length (Inch) | 2-9/32 |
| Series Code/Seat Size | 29 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
