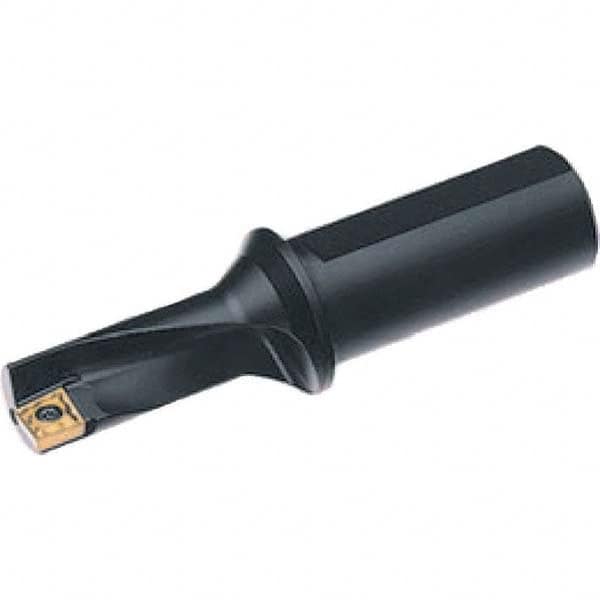

Allied Machine and Engineering - 56.5mm Max Drill Depth, 2.25xD, 25mm Diam, Indexable Insert Drill
Item #: 12324877
Brand: Allied Machine and Engineering
Model #: 11837930
| Product Specifications | |
|---|---|
| Drill Style | EC |
| Drill Diameter (mm) | 25.00 |
| Maximum Drill Depth (mm) | 56.50 |
| Shank Type | Flange |
| Shank Diameter (mm) | 32.00 |
| Cutting Direction | Left Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.25xD |
| Insert Size (mm) | 12.50 |
| Number of Drill Inserts | 1 |
| Overall Length/Projection (mm) | 129.00 |
| Insert Compatibility | XC.. 1304.. |
| Flute Length (mm) | 56.50 |
| Body Length (mm) | 69.00 |
| Collar Diameter (mm) | 40.00 |
| Series | EcoCut Classic |
