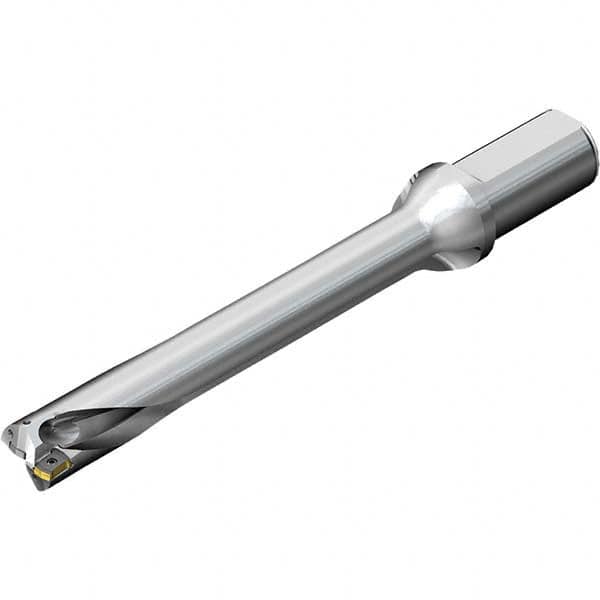

Sandvik Coromant - 4.592" Max Drill Depth, 7xD, 0.6559" Diam, Indexable Insert Drill
Item #: 17433319
Brand: Sandvik Coromant
Model #: 7548803
| Product Specifications | |
|---|---|
| Drill Style | DS20..LXxx-07 |
| Drill Diameter (Decimal Inch) | 0.6559 |
| Maximum Drill Depth (Decimal Inch) | 4.5920 |
| Shank Type | Straight |
| Shank Diameter (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 7xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 7.3745 |
| Insert Compatibility | DS20-0104-C |
| Body Length (Decimal Inch) | 4.7030 |
| Series | CoroDrill DS20 |
