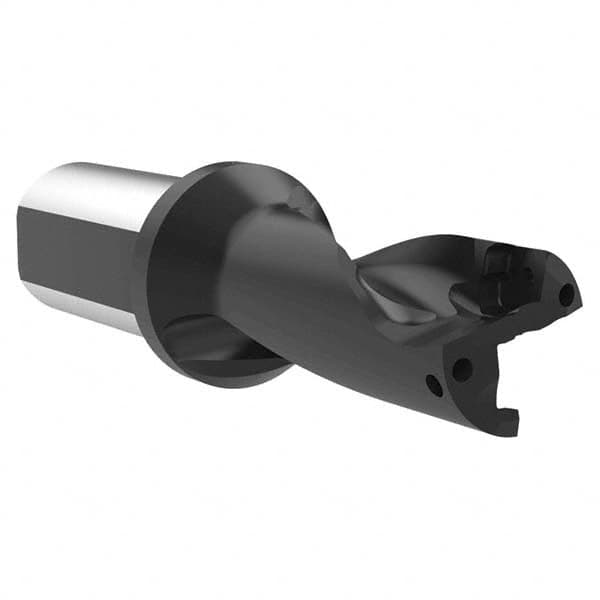

Allied Machine and Engineering - 2-1/2" Max Drill Depth, 2xD, 31.75mm Diam, Indexable Insert Drill
Item #: 12325643
Brand: Allied Machine and Engineering
Model #: D2091250I-125F
| Product Specifications | |
|---|---|
| Drill Style | D209 |
| Drill Diameter (mm) | 31.75 |
| Drill Diameter (Decimal Inch) | 1.2500 |
| Maximum Drill Depth (Decimal Inch) | 2.5000 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.2500 |
| Maximum Drill Diameter (mm) | 31.75 |
| Overall Length/Projection (Decimal Inch) | 5.6970 |
| Insert Compatibility | 4T-09T306 |
| Body Length (Decimal Inch) | 3.3740 |
| Shank Length (Decimal Inch) | 2.3230 |
| Collar Diameter (Decimal Inch) | 1.6930 |
| Series | 4Tex |
