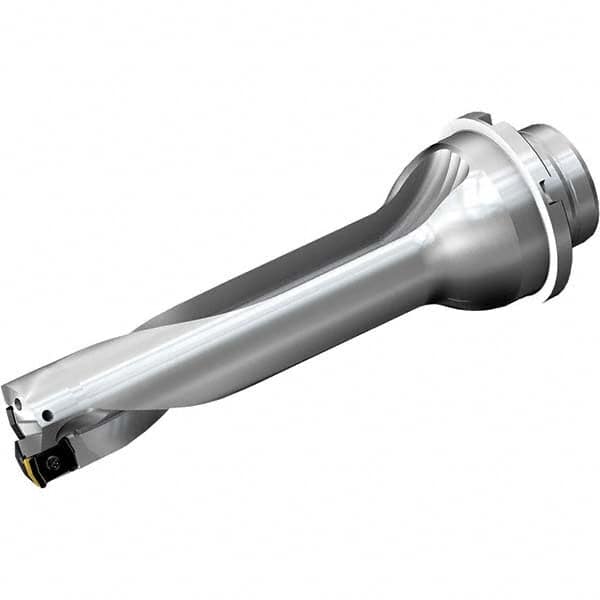

Sandvik Coromant - 107.9mm Max Drill Depth, 4xD, 26.97mm Diam, Indexable Insert Drill
Item #: 17433301
Brand: Sandvik Coromant
Model #: 7755894
| Product Specifications | |
|---|---|
| Drill Style | DS20-D..DMxx-04 |
| Drill Diameter (mm) | 26.97 |
| Maximum Drill Depth (mm) | 107.90 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 32.00 |
| Modular Connection Size | MDI-32 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 160.97 |
| Insert Compatibility | DS20-0306-C |
| Body Length (mm) | 111.10 |
| Series | CoroDrill DS20 |
