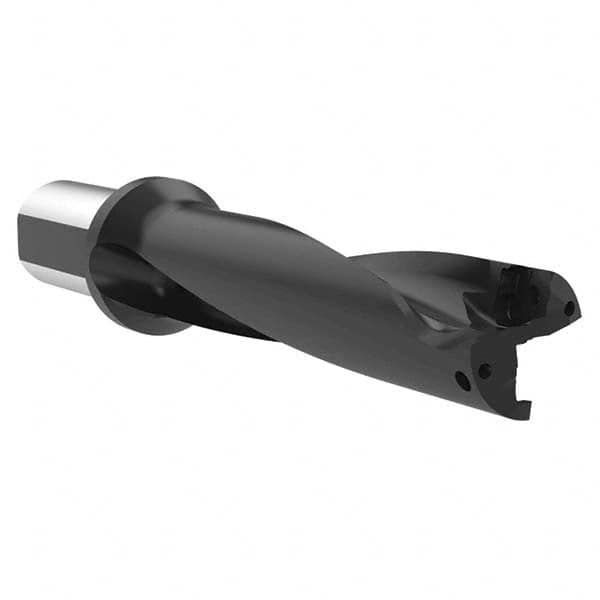

Allied Machine and Engineering - 6.929" Max Drill Depth, 4xD, 44mm Diam, Indexable Insert Drill
Item #: 12328241
Brand: Allied Machine and Engineering
Model #: D4144400M-150F
| Product Specifications | |
|---|---|
| Drill Style | D414 |
| Drill Diameter (mm) | 44.00 |
| Drill Diameter (Decimal Inch) | 1.7320 |
| Maximum Drill Depth (Decimal Inch) | 6.9290 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.7320 |
| Maximum Drill Diameter (mm) | 44.00 |
| Overall Length/Projection (Decimal Inch) | 10.9210 |
| Insert Compatibility | 4T-140408 |
| Body Length (Decimal Inch) | 8.2050 |
| Shank Length (Decimal Inch) | 2.7160 |
| Collar Diameter (Decimal Inch) | 2.3230 |
| Series | 4Tex |
