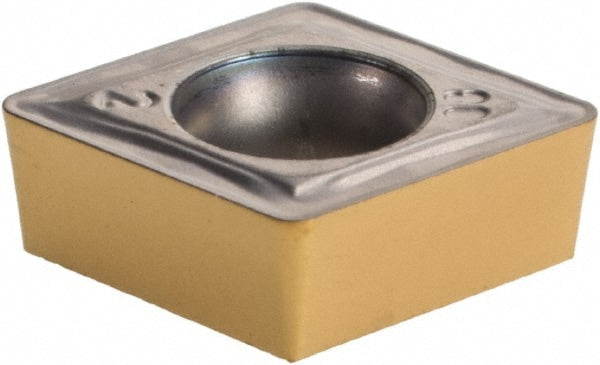

Turning Insert: CCMT3-2-14 IC830, Carbide
Item #: 50102698
Brand: Iscar
Model #: 5567368
Product Specifications
| ANSI Insert Code | CCMT3-2 |
| ISO Insert Code | CCMT09T308 |
| Insert Style | CCMT |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80 |
| Manufacturer Grade | IC830 |
| Coating/Finish | AlTiN; TiN |
| Series | Isoturn |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Hardened Materials (H) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material Code | P; S; H; M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | 14 |
| ANSI Size Code | 3-2 |
| ISO Size Code | 09T308 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3-2 |
