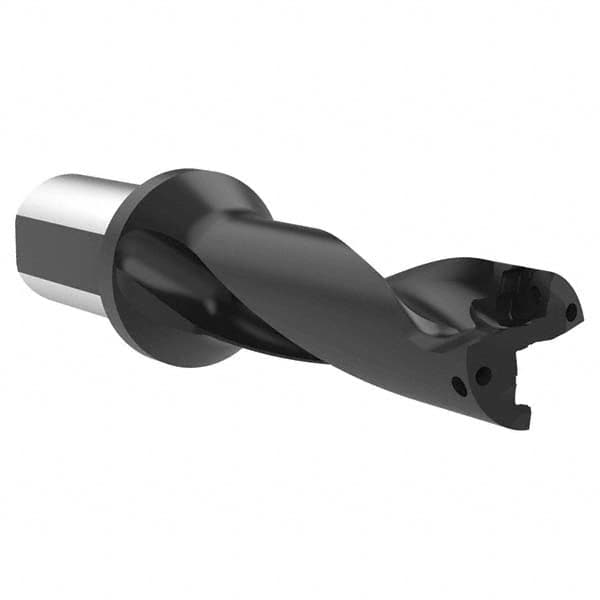

Allied Machine and Engineering - 102mm Max Drill Depth, 3xD, 34mm Diam, Indexable Insert Drill
Item #: 12327003
Brand: Allied Machine and Engineering
Model #: D3113400M-40FM
| Product Specifications | |
|---|---|
| Drill Style | D311 |
| Drill Diameter (mm) | 34.00 |
| Drill Diameter (Decimal Inch) | 1.3390 |
| Maximum Drill Depth (mm) | 102.00 |
| Shank Type | Flange |
| Shank Diameter (mm) | 40.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.3390 |
| Maximum Drill Diameter (mm) | 34.00 |
| Overall Length/Projection (mm) | 207.40 |
| Insert Compatibility | 4T-11T306 |
| Body Length (mm) | 138.40 |
| Shank Length (mm) | 69.00 |
| Collar Diameter (mm) | 54.00 |
| Series | 4Tex |
