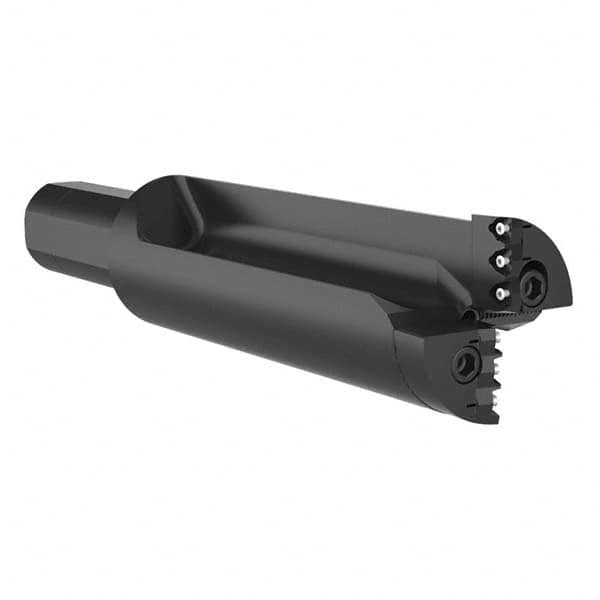

Allied Machine and Engineering - 7-63/64" Max Drill Depth, 2.5xD, 76.2mm Diam, Indexable Insert Drill
Item #: 50917996
Brand: Allied Machine and Engineering
Model #: SP48X25-200L
| Product Specifications | |
|---|---|
| Drill Style | SP48 |
| Drill Diameter (mm) | 76.20 |
| Drill Diameter (Decimal Inch) | 3.0000 |
| Maximum Drill Depth (Inch) | 7-63/64 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.5xD |
| Number of Drill Inserts | 6 |
| Maximum Drill Diameter (Decimal Inch) | 3.2000 |
| Maximum Drill Diameter (mm) | 81.30 |
| Overall Length/Projection (Inch) | 13-27/32 |
| Insert Compatibility | OP-05T308 |
| Body Length (Decimal Inch) | 9.3438 |
| Series | Revolution Drill |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
