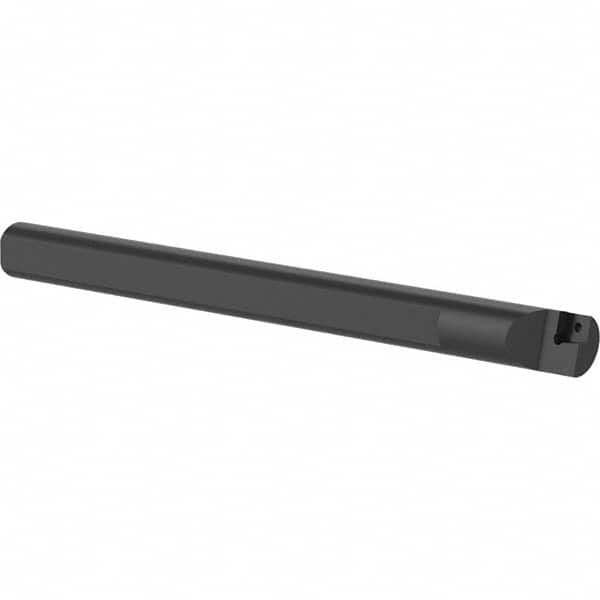

Criterion - 0.832" Min Bore Diam, 4-3/4" Max Bore Depth, 3/4" Shank Diam, Boring Bar
Item #: 90737131
Brand: Criterion
Model #: 0832DHM
Features and Benefits
Boring bars are used to enlarge or finish the inside diameter of a workpiece.
Black oxide prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
| Product Specifications | |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.8320 |
| Maximum Bore Depth (Decimal Inch) | 4.7500 |
| Material | Heavy Metal |
| Boring Bar Type | Boring |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 10 |
| Cutting Direction | Right Hand |
| Finish/Coating | Black Oxide |
