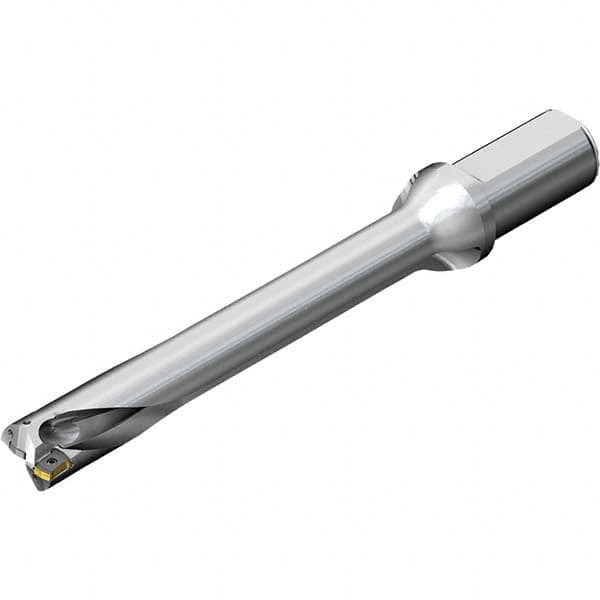

Sandvik Coromant - 9-5/8" Max Drill Depth, 7xD, 1-3/8" Diam, Indexable Insert Drill
Item #: 94621968
Brand: Sandvik Coromant
Model #: 7548923
| Product Specifications | |
|---|---|
| Drill Style | DS20..LXxx-07 |
| Drill Diameter (Inch) | 1-3/8 |
| Maximum Drill Depth (Inch) | 9-5/8 |
| Shank Type | Straight |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 7xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 13.7079 |
| Insert Compatibility | DS20-0508-C |
| Body Length (Decimal Inch) | 9.7790 |
| Series | CoroDrill DS20 |
