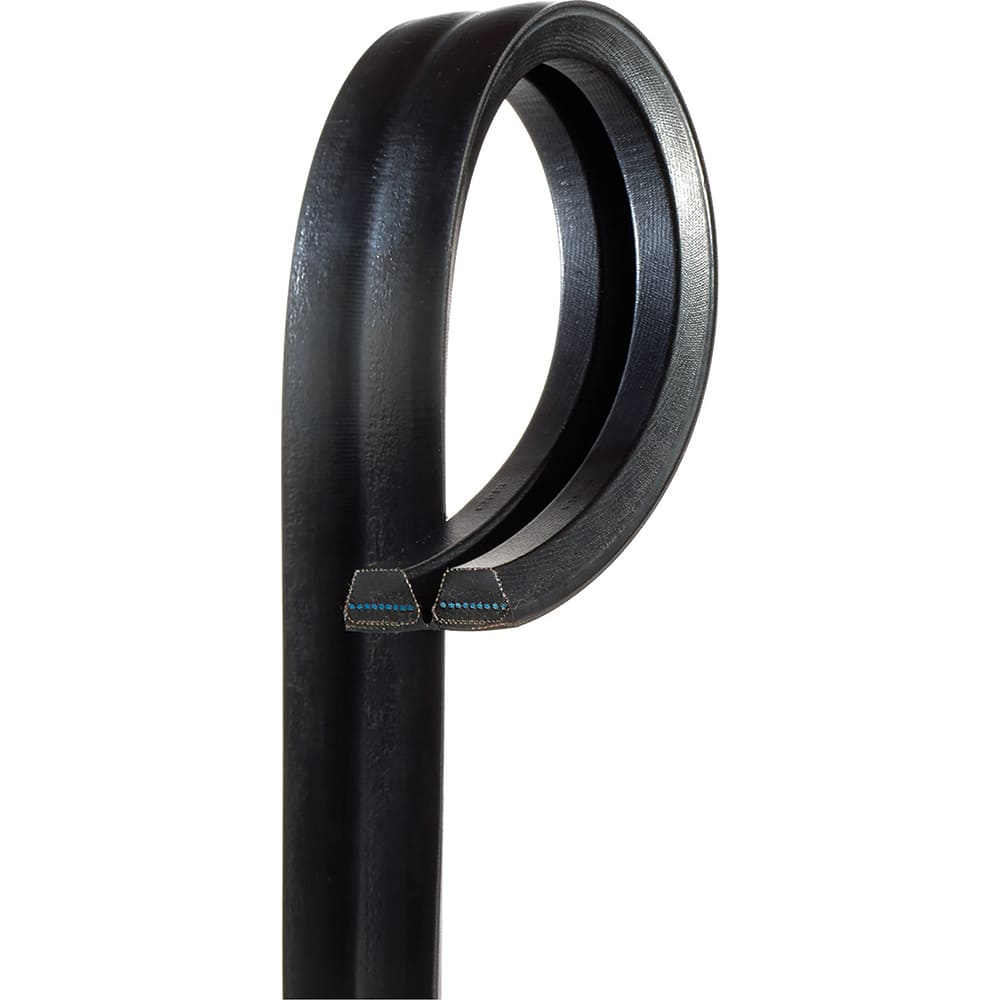

Gates - Belts Belt Style: V-Belts Belt Section: 3V
Item #: 96330626
Brand: Gates
Model #: 93882047
Product Specifications
Belts; Belt Style: V-Belts ; Belt Section: 3V ; Outside Length: 106.100 (Decimal Inch); Outside Length: 2694.94 (mm); Belt Width: 0.402 (Decimal Inch); Belt Width: 10.21 (mm)
| Belt Style | V-Belts |
| Belt Section | 3V |
| Outside Length (Decimal Inch) | 106.100 |
| Outside Length (mm) | 2694.94 |
| Belt Width (Decimal Inch) | 0.402 |
| Belt Width (mm) | 10.21 |
| Belt Number | 3V1060 |
| Belt Internal Length (Decimal Inch) | 104.14 |
| Belt Internal Length (mm) | 2645.16 |
| Number of Ribs | 0.000 |
| Number of Teeth | 0 |
| Belt Pitch | 0.2 |
| Material | Neoprene |
| Belt Height | 0.312 |
| Color | Black |
| Style | Banded V-Belt |
| Maximum Temperature (F) | 180 |
