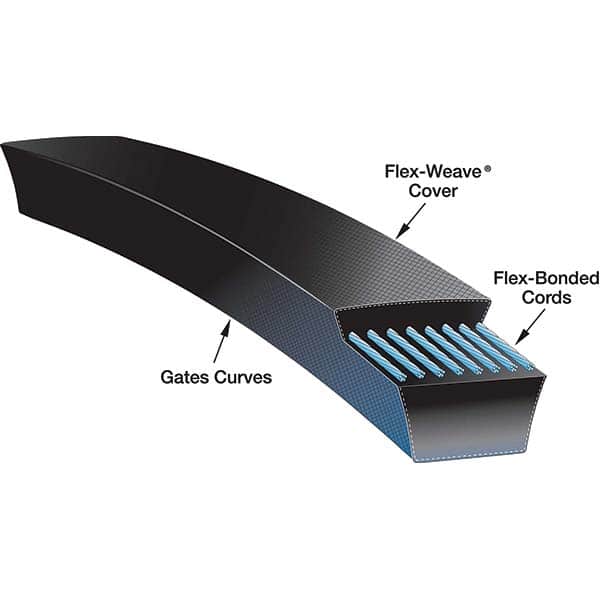

Gates - Belts Belt Style: V-Belts Belt Section: 3L
Item #: 17486085
Brand: Gates
Model #: 84001180
Product Specifications
Belts; Belt Style: V-Belts ; Belt Section: 3L ; Outside Length: 18.000 (Decimal Inch); Outside Length: 457.20 (mm); Belt Width: 3/8 (Inch); Belt Width: 0.408 (Decimal Inch)
| Belt Style | V-Belts |
| Belt Section | 3L |
| Outside Length (Decimal Inch) | 18.000 |
| Outside Length (mm) | 457.20 |
| Belt Width (Inch) | 3/8 |
| Belt Width (Decimal Inch) | 0.408 |
| Belt Width (mm) | 10.36 |
| Belt Number | 1180 |
| Belt Internal Length (Decimal Inch) | 16.62 |
| Belt Internal Length (mm) | 422.15 |
| Material | Gates Rubber Compound |
| Belt Height | 0.219 |
| Color | Black |
| Style | Fractional Horsepower V-Belt |
| Maximum Temperature (F) | 140 |
