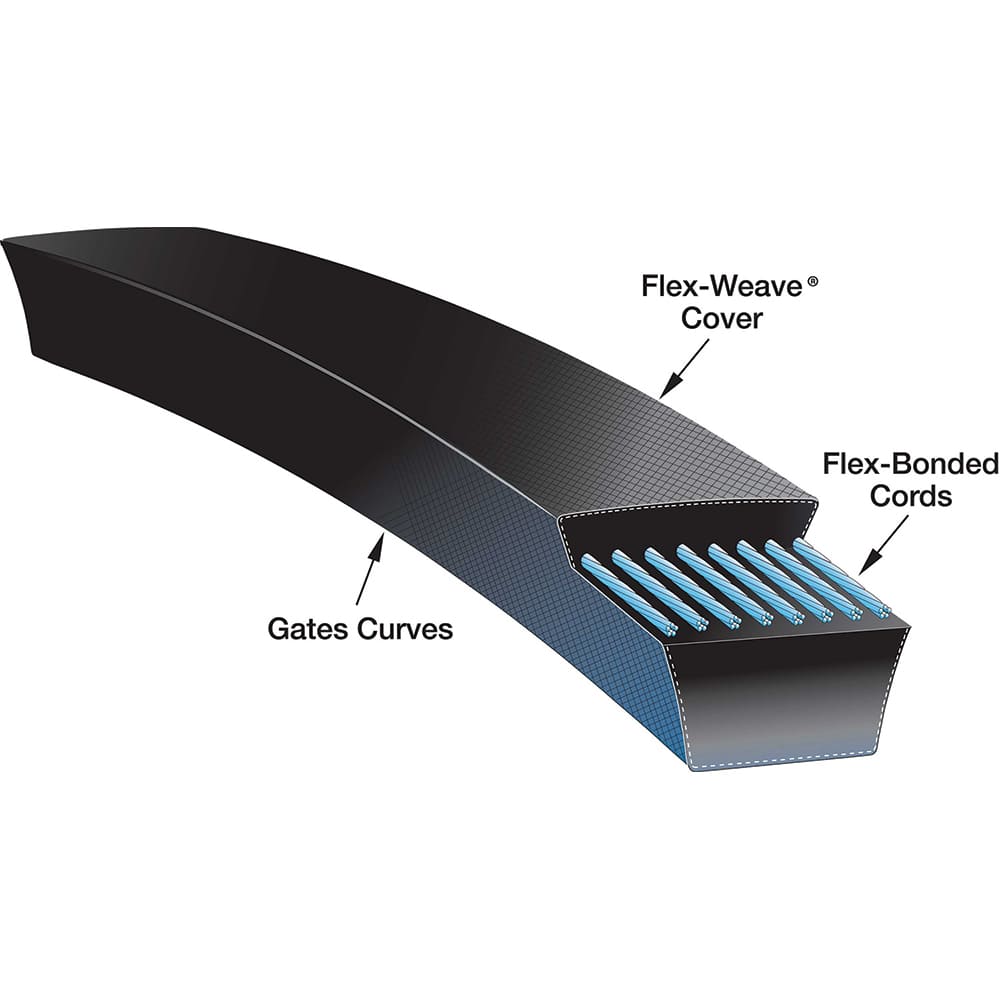

Gates - Belts Belt Style: V-Belts Belt Section: 5M
Item #: 96343058
Brand: Gates
Model #: 84002270
Product Specifications
Belts; Belt Style: V-Belts ; Belt Section: 5M ; Outside Length: 47.074 (Decimal Inch); Outside Length: 1195.68 (mm); Belt Width: 0.385 (Decimal Inch); Belt Width: 9.78 (mm)
| Belt Style | V-Belts |
| Belt Section | 5M |
| Outside Length (Decimal Inch) | 47.074 |
| Outside Length (mm) | 1195.68 |
| Belt Width (Decimal Inch) | 0.385 |
| Belt Width (mm) | 9.78 |
| Belt Number | 2/5M515JB |
| Belt Internal Length (Decimal Inch) | 20.27 |
| Belt Internal Length (mm) | 514.98 |
| Number of Ribs | 2.000 |
| Number of Teeth | 0 |
| Belt Pitch | 0.2 |
| Material | Urethane |
| Color | Black |
| Style | Bandless |
