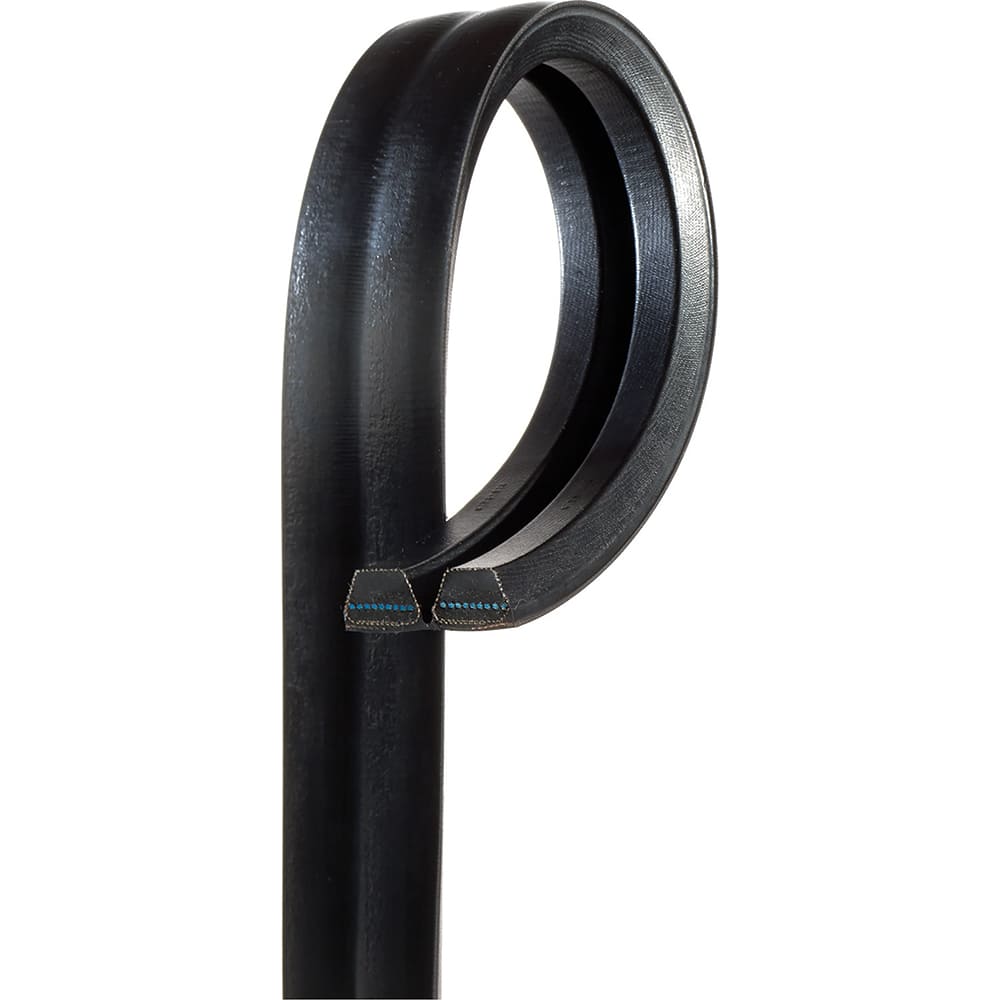

Gates - Belts Belt Style: V-Belts Belt Section: 3V
Item #: 96331004
Brand: Gates
Model #: 93852030
Product Specifications
Belts; Belt Style: V-Belts ; Belt Section: 3V ; Outside Length: 63.210 (Decimal Inch); Outside Length: 1605.53 (mm); Belt Width: 0.402 (Decimal Inch); Belt Width: 10.21 (mm)
| Belt Style | V-Belts |
| Belt Section | 3V |
| Outside Length (Decimal Inch) | 63.210 |
| Outside Length (mm) | 1605.53 |
| Belt Width (Decimal Inch) | 0.402 |
| Belt Width (mm) | 10.21 |
| Belt Number | 3V630 |
| Belt Internal Length (Decimal Inch) | 61.25 |
| Belt Internal Length (mm) | 1555.75 |
| Number of Ribs | 0.000 |
| Number of Teeth | 0 |
| Belt Pitch | 0.2 |
| Material | Neoprene |
| Belt Height | 0.312 |
| Color | Black |
| Style | Banded V-Belt |
| Maximum Temperature (F) | 180 |
