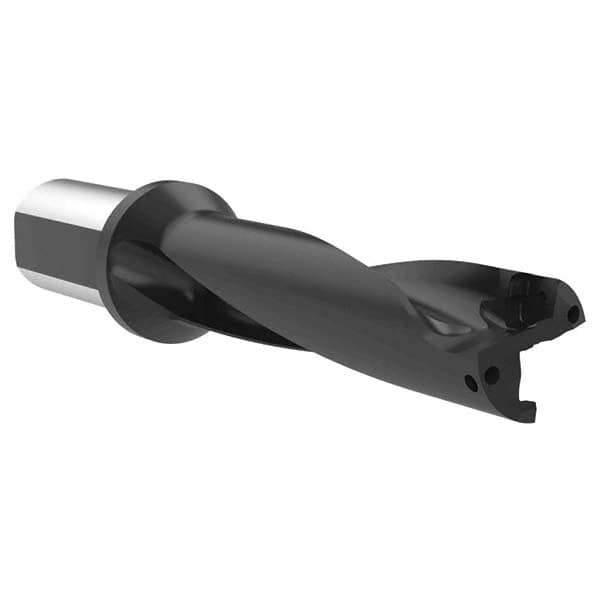

Allied Machine and Engineering - 4.567" Max Drill Depth, 4xD, 29mm Diam, Indexable Insert Drill
Item #: 12328100
Brand: Allied Machine and Engineering
Model #: D4092900M-125F
| Product Specifications | |
|---|---|
| Drill Style | D409 |
| Drill Diameter (mm) | 29.00 |
| Drill Diameter (Decimal Inch) | 1.1420 |
| Maximum Drill Depth (Decimal Inch) | 4.5670 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.1420 |
| Maximum Drill Diameter (mm) | 29.00 |
| Overall Length/Projection (Decimal Inch) | 7.7830 |
| Insert Compatibility | 4T-09T306 |
| Body Length (Decimal Inch) | 5.4610 |
| Shank Length (Decimal Inch) | 2.3220 |
| Collar Diameter (Decimal Inch) | 1.6140 |
| Series | 4Tex |
