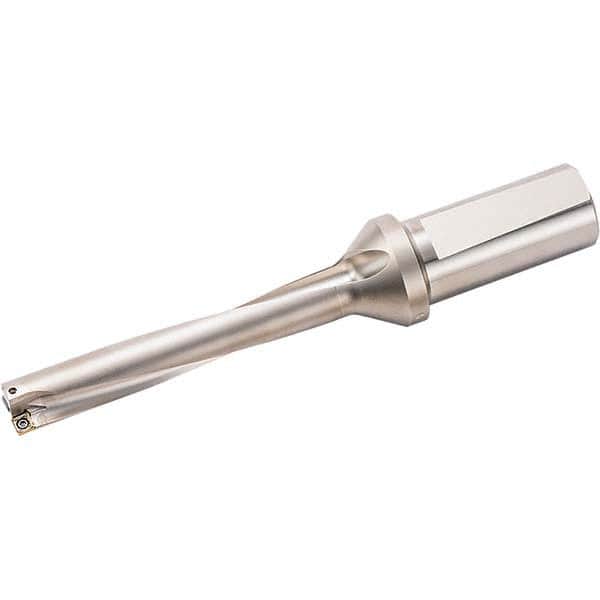

Kyocera - 27mm Max Drill Depth, 2xD, 13.5mm Diam, Indexable Insert Drill
Item #: 10625598
Brand: Kyocera
Model #: 8861096
| Product Specifications | |
|---|---|
| Drill Style | DRV |
| Drill Diameter (mm) | 13.50 |
| Maximum Drill Depth (mm) | 27.00 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 20.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 299.00 |
| Insert Compatibility | LCMT030204; LCMT030203 |
| Body Length (mm) | 230.00 |
| Shank Length (mm) | 69.00 |
| Collar Diameter (mm) | 49.00 |
| Series | DRV Magic Drill |
