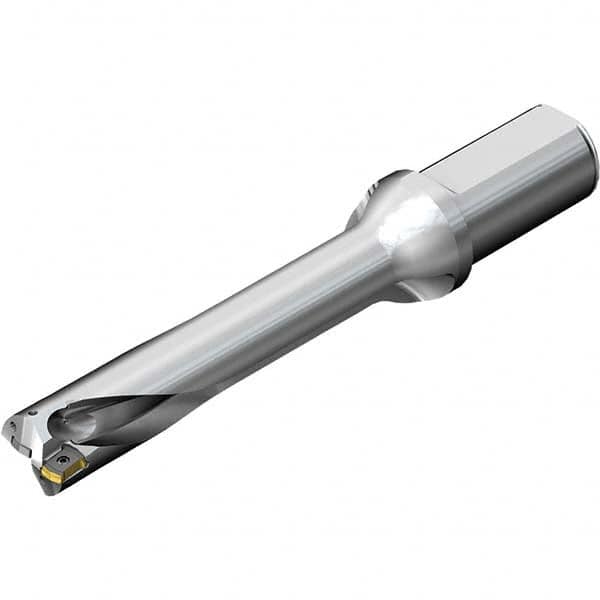

Sandvik Coromant - Indexable Insert Drills Drill Style: DS20 Drill Diameter (Inch): 1-1/8
Item #: 13325121
Brand: Sandvik Coromant
Model #: 7548881
Product Specifications
Indexable Insert Drills; Drill Style: DS20 ; Drill Diameter (Inch): 1-1/8 ; Maximum Drill Depth (Inch): 5-5/8 ; Shank Type: Straight Shank ; Shank Diameter (Inch): 1-1/4 ; Cutting Direction: Right Hand
| Drill Style | DS20 |
| Drill Diameter (Inch) | 1-1/8 |
| Maximum Drill Depth (Inch) | 5-5/8 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 9.1072 |
| Insert Compatibility | DS20-0407-C |
| Body Length (Decimal Inch) | 5.7670 |
| Shank Length (mm) | 60.83 |
| Series | CoroDrill DS20 |
