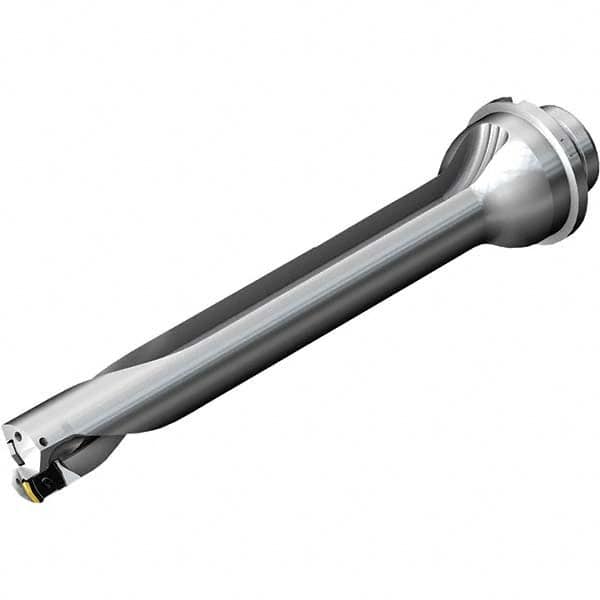

Sandvik Coromant - 147mm Max Drill Depth, 7xD, 21mm Diam, Indexable Insert Drill
Item #: 17432964
Brand: Sandvik Coromant
Model #: 7755877
| Product Specifications | |
|---|---|
| Drill Style | DS20-D..DMxx-07 |
| Drill Diameter (mm) | 21.00 |
| Maximum Drill Depth (mm) | 147.00 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 25.00 |
| Modular Connection Size | MDI-25 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 7xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 195.00 |
| Insert Compatibility | DS20-0205-C |
| Body Length (mm) | 150.00 |
| Series | CoroDrill DS20 |
