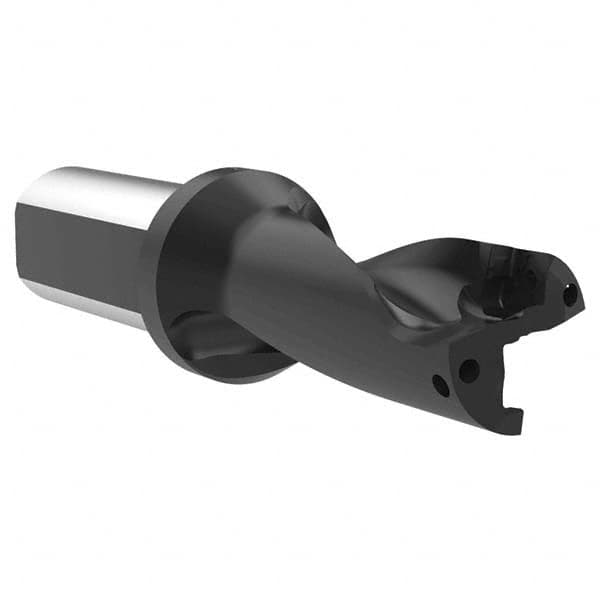

Allied Machine and Engineering - 1-3/4" Max Drill Depth, 2xD, 22.22mm Diam, Indexable Insert Drill
Item #: 12325486
Brand: Allied Machine and Engineering
Model #: D2070875I-100F
| Product Specifications | |
|---|---|
| Drill Style | D207 |
| Drill Diameter (mm) | 22.22 |
| Drill Diameter (Decimal Inch) | 0.8750 |
| Maximum Drill Depth (Decimal Inch) | 1.7500 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.8750 |
| Maximum Drill Diameter (mm) | 22.22 |
| Overall Length/Projection (Decimal Inch) | 4.6810 |
| Insert Compatibility | 4T-070305 |
| Body Length (Decimal Inch) | 2.5550 |
| Shank Length (Decimal Inch) | 2.1260 |
| Collar Diameter (Decimal Inch) | 1.2990 |
| Series | 4Tex |
