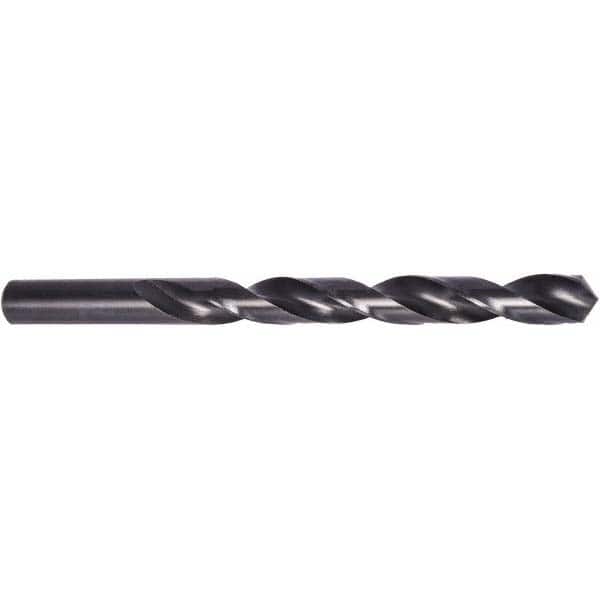

DORMER - 11.4mm 118° High Speed Steel Jobber Drill
Item #: 84666528
Brand: DORMER
Model #: 0000694
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Oxide prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 11.40 |
| Drill Bit Size (Decimal Inch) | 0.4488 |
| Drill Point Angle | 118 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Oxide |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 94.00 |
| Overall Length (mm) | 142.00 |
| Point Type | Standard |
| Spiral Type | Regular Spiral |
| Specification Designation | DIN |
| Web Configuration | Tapered |
| Web Thinning | Web-Thinned |
| Series/List | A100 |
