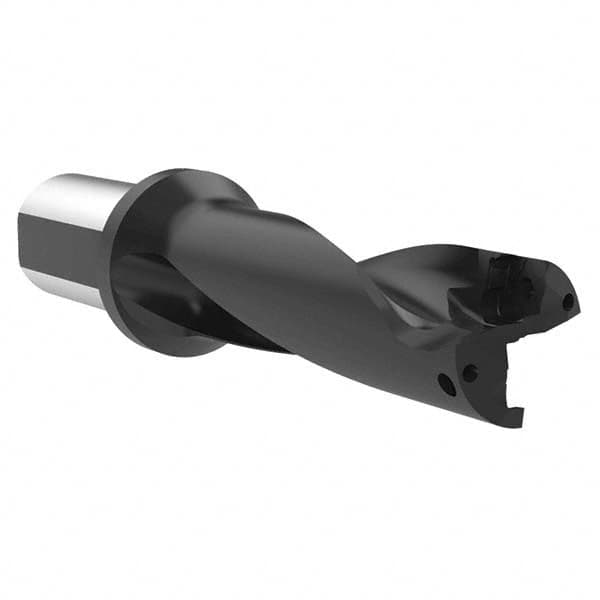

Allied Machine and Engineering - 141mm Max Drill Depth, 3xD, 47mm Diam, Indexable Insert Drill
Item #: 12327201
Brand: Allied Machine and Engineering
Model #: D3144700M-40FM
| Product Specifications | |
|---|---|
| Drill Style | D314 |
| Drill Diameter (mm) | 47.00 |
| Drill Diameter (Decimal Inch) | 1.8500 |
| Maximum Drill Depth (mm) | 141.00 |
| Shank Type | Flange |
| Shank Diameter (mm) | 40.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.8500 |
| Maximum Drill Diameter (mm) | 47.00 |
| Overall Length/Projection (mm) | 242.40 |
| Insert Compatibility | 4T-140408 |
| Flute Length (Decimal Inch) | 1.6540 |
| Body Length (mm) | 173.40 |
| Shank Length (mm) | 69.00 |
| Collar Diameter (mm) | 59.00 |
| Series | 4Tex |
