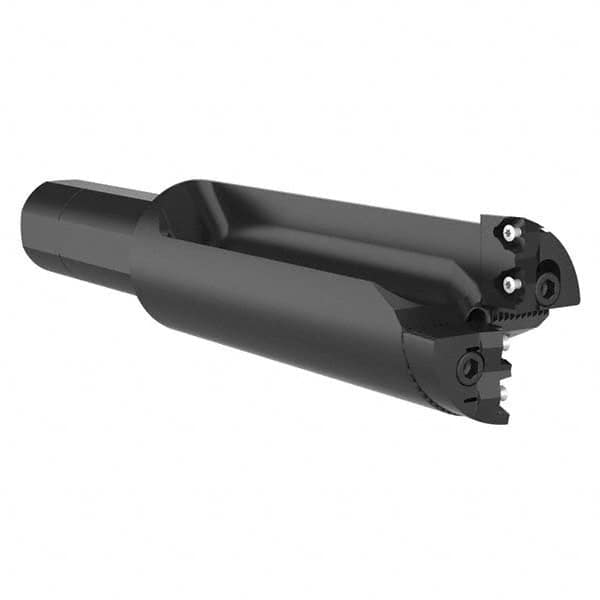

Allied Machine and Engineering - 5-3/8" Max Drill Depth, 2.2xD, 55.9mm Diam, Indexable Insert Drill
Item #: 12328928
Brand: Allied Machine and Engineering
Model #: SP38X22-150L
| Product Specifications | |
|---|---|
| Drill Style | SP38 |
| Drill Diameter (mm) | 55.90 |
| Drill Diameter (Decimal Inch) | 2.2000 |
| Maximum Drill Depth (Inch) | 5-3/8 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.2xD |
| Number of Drill Inserts | 4 |
| Maximum Drill Diameter (Decimal Inch) | 2.4000 |
| Maximum Drill Diameter (mm) | 61.00 |
| Overall Length/Projection (Inch) | 10-19/64 |
| Insert Compatibility | OP-05T308 |
| Body Length (Decimal Inch) | 6.2969 |
| Shank Length (Decimal Inch) | 4.0000 |
| Series | Revolution Drill |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
