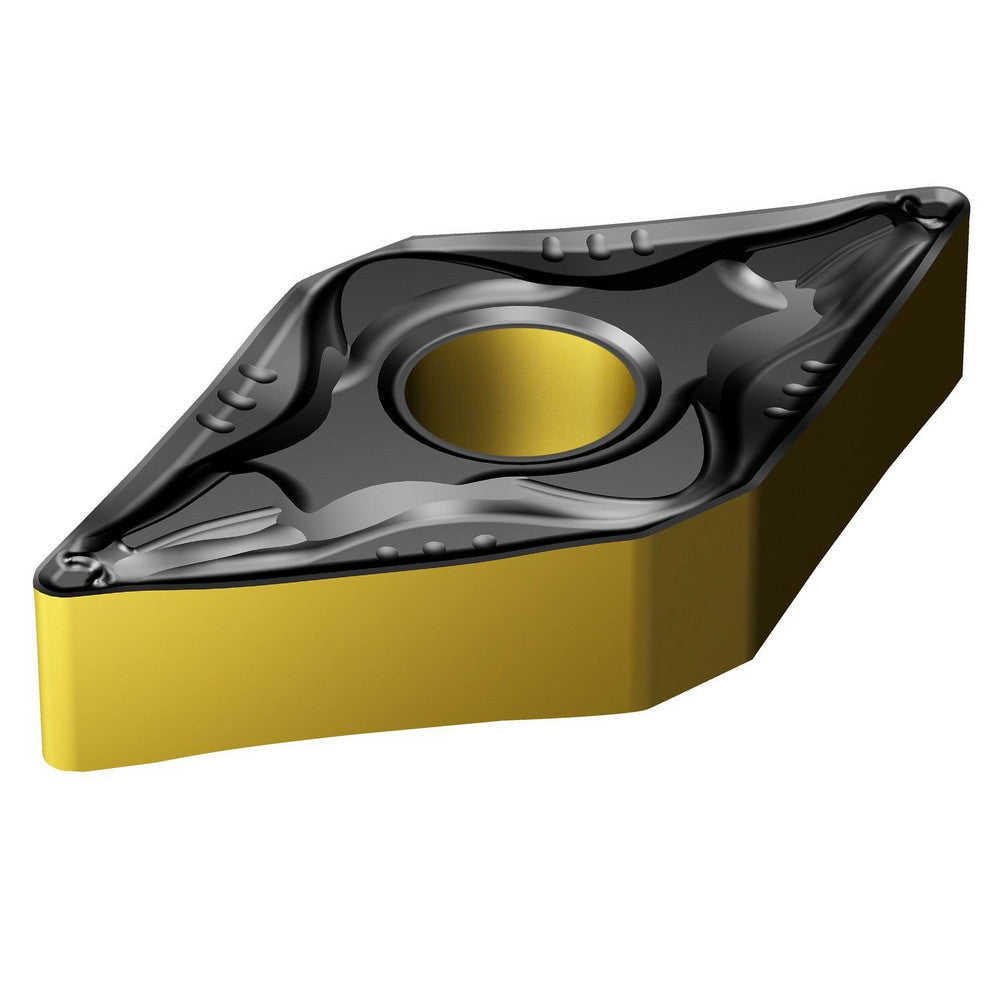

Turning Insert: DNMG333-PM 4405, Carbide
Item #: 01337948
Brand: Sandvik Coromant
Model #: 8322608
Product Specifications
| ANSI Insert Code | DNMG |
| ISO Insert Code | DNMG110412 |
| Relief Angle | 0 |
| Insert Style | DNMG |
| Corner Radius (mm) | 1.19 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Included Angle | 55 |
| Manufacturer Grade | 4405 |
| Coating/Finish | TiCN/Al2O3/TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | T-Max P |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Steel (P) - High Wear-Resistance |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | DNMG 11 04 12-PM 4405 |
| Manufacturers Catalog Number | DNMG 333-PM 4405 |
| Chip Breaker | PM |
| ISO Size Code | 110412 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 1104 |
