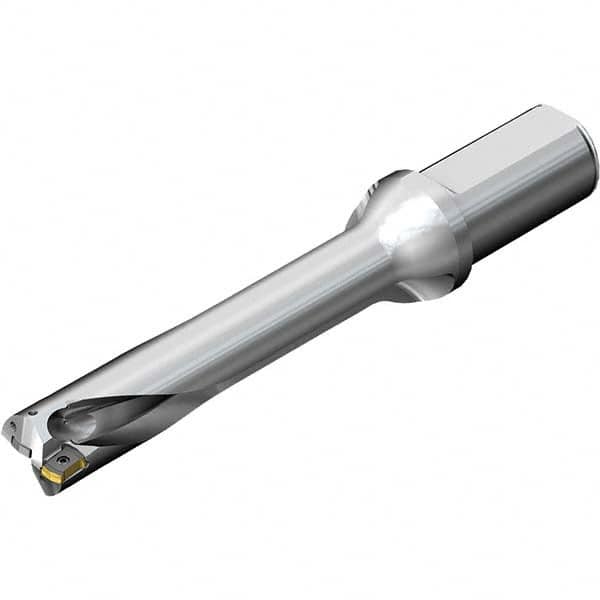

Sandvik Coromant - 234mm Max Drill Depth, 6xD, 39mm Diam, Indexable Insert Drill
Item #: 13268396
Brand: Sandvik Coromant
Model #: 7548950
| Product Specifications | |
|---|---|
| Drill Style | DS20..Lxx-06 |
| Drill Diameter (mm) | 39.00 |
| Maximum Drill Depth (mm) | 234.00 |
| Shank Type | Straight |
| Shank Diameter (mm) | 40.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 6xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 338.00 |
| Insert Compatibility | DS20-0508-C |
| Body Length (mm) | 238.00 |
| Series | CoroDrill DS20 |
