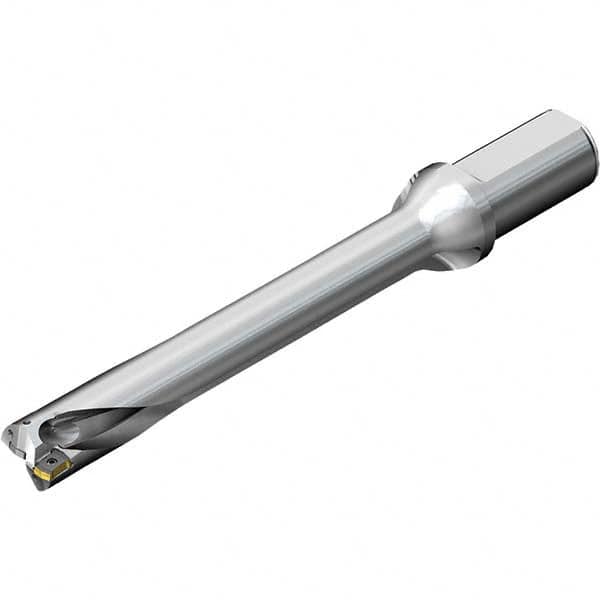

Sandvik Coromant - 110mm Max Drill Depth, 5xD, 22mm Diam, Indexable Insert Drill
Item #: 17433798
Brand: Sandvik Coromant
Model #: 7548837
| Product Specifications | |
|---|---|
| Drill Style | DS20..Lxx-05 |
| Drill Diameter (mm) | 22.00 |
| Maximum Drill Depth (mm) | 110.00 |
| Shank Type | Straight |
| Shank Diameter (mm) | 25.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 191.00 |
| Insert Compatibility | DS20-0205-C |
| Body Length (mm) | 113.00 |
| Series | CoroDrill DS20 |
