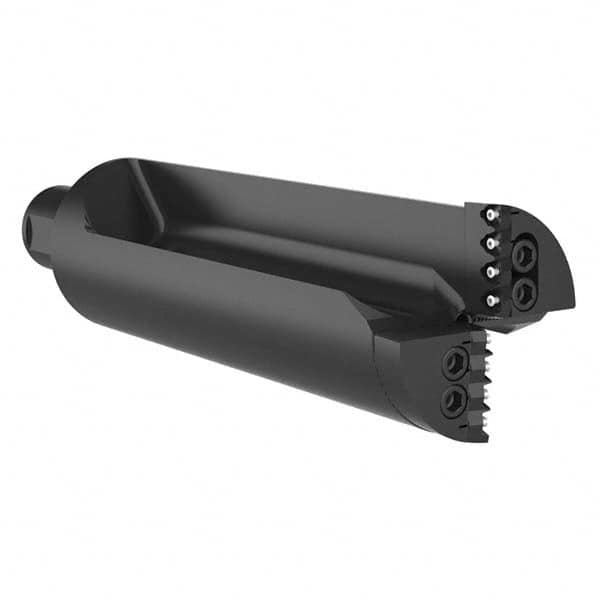

Allied Machine and Engineering - 252.2mm Max Drill Depth, 2.5xD, 96.5mm Diam, Indexable Insert Drill
Item #: 12329132
Brand: Allied Machine and Engineering
Model #: SP58X25-50M
| Product Specifications | |
|---|---|
| Drill Style | SP58 |
| Drill Diameter (mm) | 96.50 |
| Drill Diameter (Decimal Inch) | 3.8000 |
| Maximum Drill Depth (mm) | 252.20 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 50.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.5xD |
| Number of Drill Inserts | 8 |
| Maximum Drill Diameter (Decimal Inch) | 4.0000 |
| Maximum Drill Diameter (mm) | 101.60 |
| Overall Length/Projection (mm) | 379.80 |
| Insert Compatibility | OP-05T308 |
| Body Length (mm) | 299.80 |
| Shank Length (mm) | 80.00 |
| Series | Revolution Drill |
