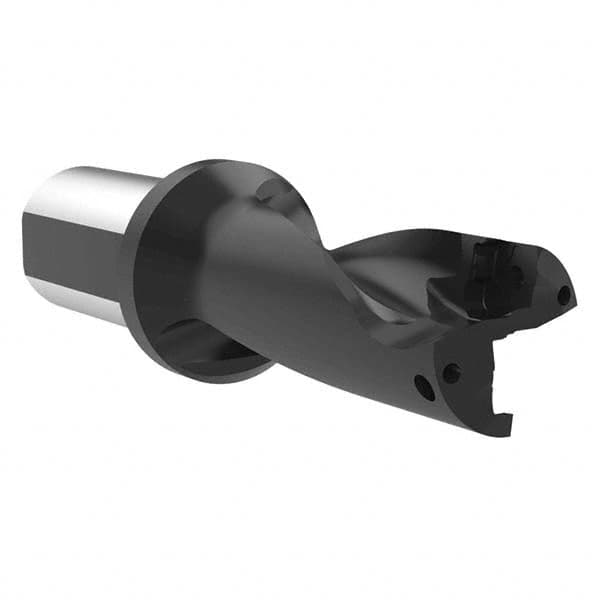

Allied Machine and Engineering - 3.543" Max Drill Depth, 2xD, 45mm Diam, Indexable Insert Drill
Item #: 13030598
Brand: Allied Machine and Engineering
Model #: D2144500M-150F
| Product Specifications | |
|---|---|
| Drill Style | D214 |
| Drill Diameter (mm) | 45.00 |
| Drill Diameter (Decimal Inch) | 1.7720 |
| Maximum Drill Depth (Decimal Inch) | 3.5430 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.7720 |
| Maximum Drill Diameter (mm) | 45.00 |
| Overall Length/Projection (Decimal Inch) | 7.5350 |
| Insert Compatibility | 4T-140408 |
| Body Length (Decimal Inch) | 4.8190 |
| Shank Length (Decimal Inch) | 2.7160 |
| Collar Diameter (Decimal Inch) | 2.3230 |
| Series | 4Tex |
