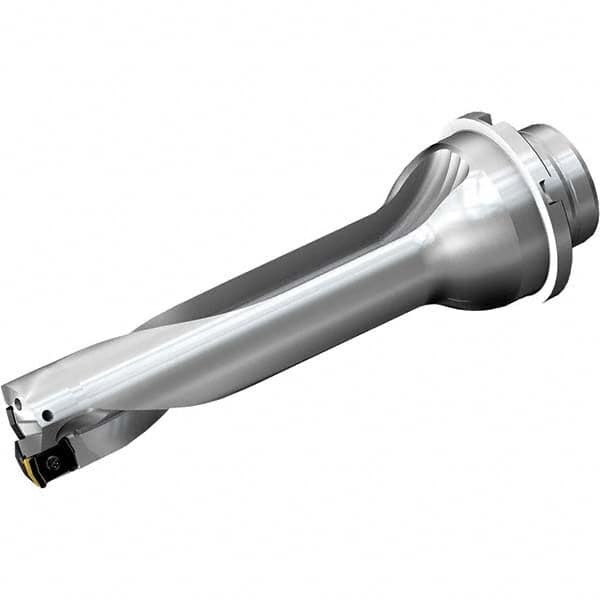

Sandvik Coromant - 146mm Max Drill Depth, 4xD, 36.5mm Diam, Indexable Insert Drill
Item #: 17433178
Brand: Sandvik Coromant
Model #: 7755908
| Product Specifications | |
|---|---|
| Drill Style | DS20-D..DMxx-04 |
| Drill Diameter (mm) | 36.50 |
| Maximum Drill Depth (mm) | 146.00 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 40.00 |
| Modular Connection Size | MDI-40 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 208.14 |
| Insert Compatibility | DS20-0508-C |
| Body Length (mm) | 149.91 |
| Series | CoroDrill DS20 |
