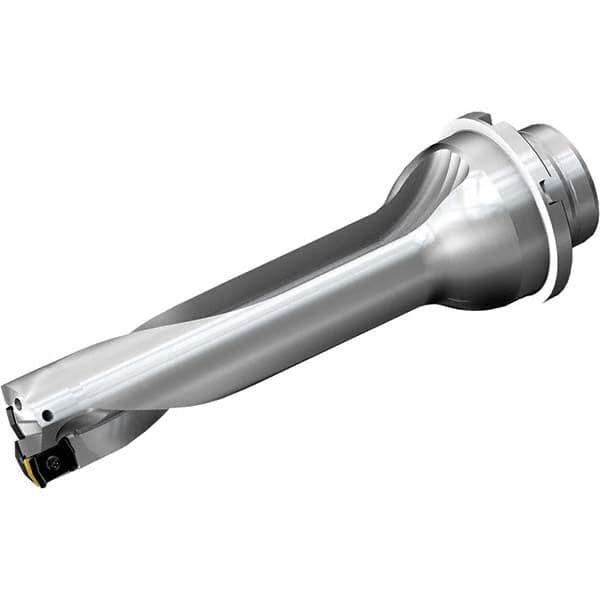

Sandvik Coromant - 88mm Max Drill Depth, 4xD, 22mm Diam, Indexable Insert Drill
Item #: 13268958
Brand: Sandvik Coromant
Model #: 7755878
| Product Specifications | |
|---|---|
| Drill Style | DS20-D..DMxx-04 |
| Drill Diameter (mm) | 22.00 |
| Maximum Drill Depth (mm) | 88.00 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 25.00 |
| Modular Connection Size | MDI-25 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 136.00 |
| Insert Compatibility | DS20-0205-C |
| Body Length (mm) | 91.00 |
| Series | CoroDrill DS20 |
