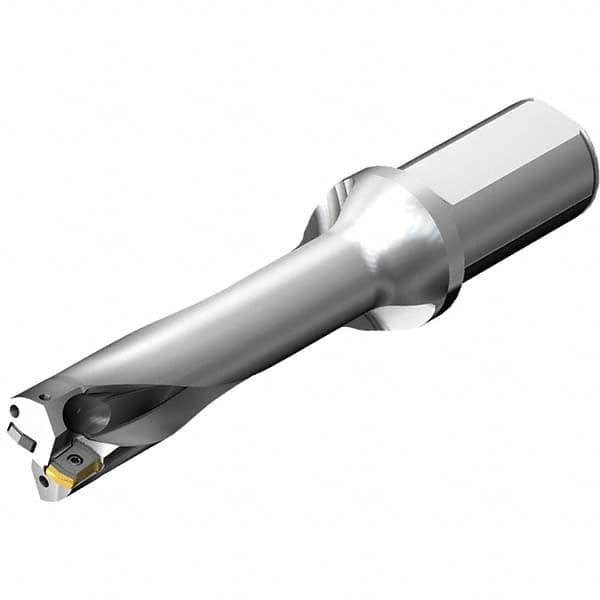

Sandvik Coromant - 3" Max Drill Depth, 4xD, 3/4" Diam, Indexable Insert Drill
Item #: 17433228
Brand: Sandvik Coromant
Model #: 7548820
| Product Specifications | |
|---|---|
| Drill Style | DS20..LXxx-04 |
| Drill Diameter (Inch) | 3/4 |
| Maximum Drill Depth (Inch) | 3 |
| Shank Type | Straight |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 6.1697 |
| Insert Compatibility | DS20-0205-C |
| Body Length (Decimal Inch) | 3.1190 |
| Series | CoroDrill DS20 |
