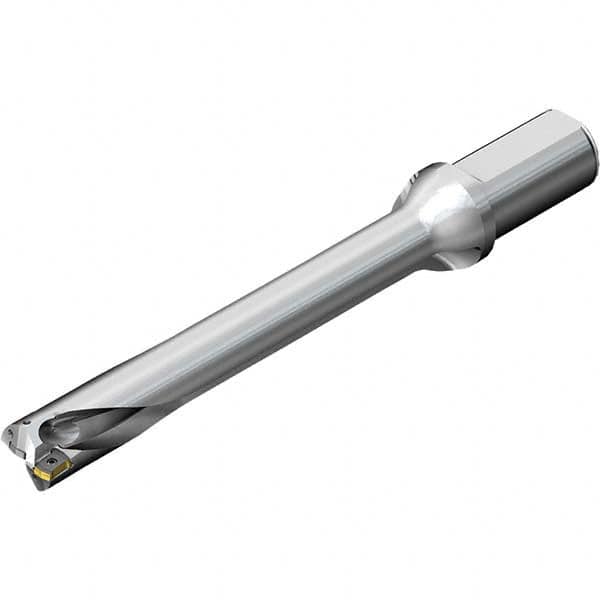

Sandvik Coromant - 255.5mm Max Drill Depth, 7xD, 36.5mm Diam, Indexable Insert Drill
Item #: 13268537
Brand: Sandvik Coromant
Model #: 7548935
| Product Specifications | |
|---|---|
| Drill Style | DS20..LXxx-07 |
| Drill Diameter (mm) | 36.50 |
| Maximum Drill Depth (mm) | 255.50 |
| Shank Type | Straight |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 7xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 14.1369 |
| Insert Compatibility | DS20-0508-C |
| Body Length (Decimal Inch) | 10.2130 |
| Series | CoroDrill DS20 |
