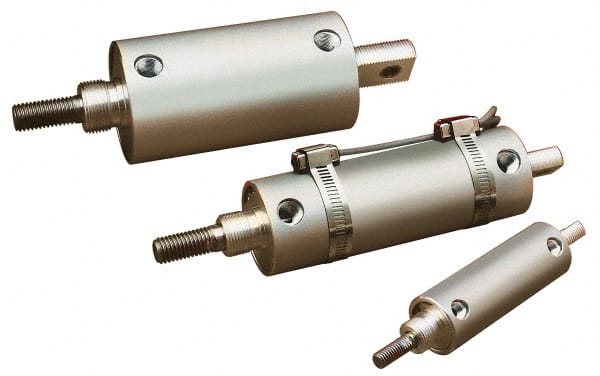

Schrader Bellows - 2-1/4" Bore x 2" Stroke TT Series Air Cylinder
Item #: 85493245
Brand: Schrader Bellows
Model #: 034520179
| Product Specifications | |
|---|---|
| Type | Single Acting |
| Bore Size (Inch) | 2-1/4 |
| Bore Size (Decimal Inch) | 2.250 |
| Rod Diameter (Decimal Inch) | 0.500 |
| Stroke Length (Inch) | 2 |
| Mounting Style | Base - Vertical |
| Port Size | 1/8-27 |
| Port Type | NPT |
| Length (Decimal Inch) | 4.770 |
| Material | Bronze/Steel |
| Seal Material | Buna-N |
| Maximum Working Pressure (psi) | 150 |
| Style | Male |
