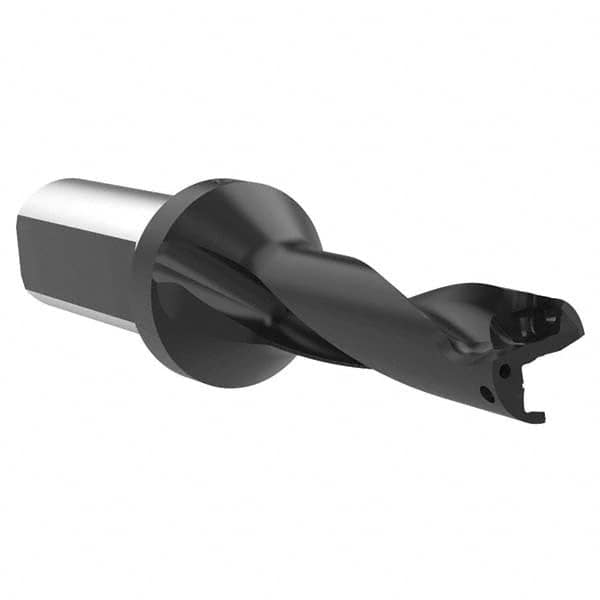

Allied Machine and Engineering - 1.654" Max Drill Depth, 3xD, 14mm Diam, Indexable Insert Drill
Item #: 12326203
Brand: Allied Machine and Engineering
Model #: D3041400M-075F
| Product Specifications | |
|---|---|
| Drill Style | D304 |
| Drill Diameter (mm) | 14.00 |
| Drill Diameter (Decimal Inch) | 0.5510 |
| Maximum Drill Depth (Decimal Inch) | 1.6540 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.5510 |
| Maximum Drill Diameter (mm) | 14.00 |
| Overall Length/Projection (Decimal Inch) | 4.1890 |
| Insert Compatibility | 4T-040203 |
| Body Length (Decimal Inch) | 2.4960 |
| Shank Length (Decimal Inch) | 1.6930 |
| Collar Diameter (Decimal Inch) | 1.0630 |
| Series | 4Tex |
