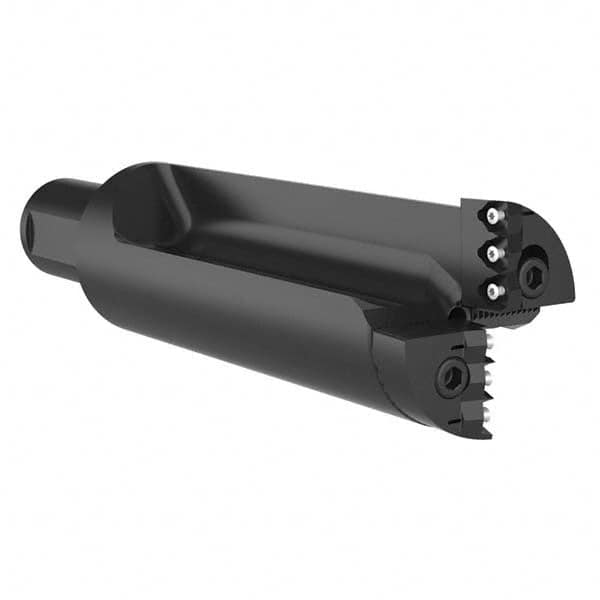

Allied Machine and Engineering - 158.7mm Max Drill Depth, 2.2xD, 66mm Diam, Indexable Insert Drill
Item #: 12328985
Brand: Allied Machine and Engineering
Model #: SP44X22-40M
| Product Specifications | |
|---|---|
| Drill Style | SP44 |
| Drill Diameter (mm) | 66.00 |
| Drill Diameter (Decimal Inch) | 2.6000 |
| Maximum Drill Depth (mm) | 158.70 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 40.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.2xD |
| Number of Drill Inserts | 6 |
| Maximum Drill Diameter (Decimal Inch) | 2.8000 |
| Maximum Drill Diameter (mm) | 71.10 |
| Overall Length/Projection (mm) | 261.70 |
| Insert Compatibility | OP-05T308 |
| Body Length (mm) | 191.70 |
| Shank Length (mm) | 70.00 |
| Series | Revolution Drill |
