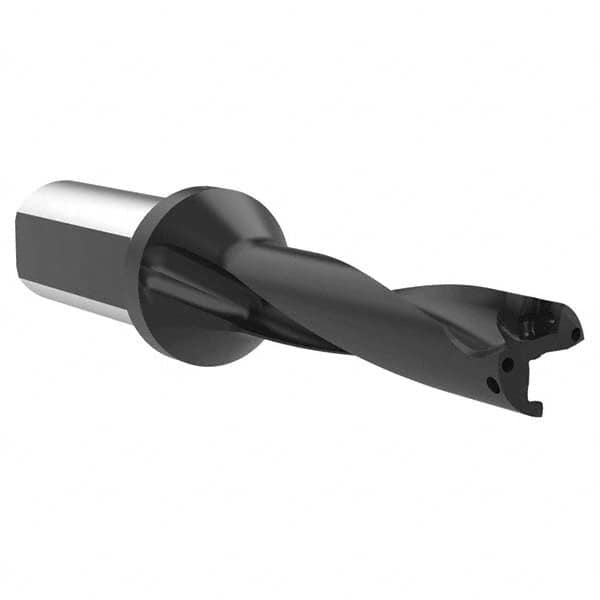

Allied Machine and Engineering - 2.748" Max Drill Depth, 4xD, 17.46mm Diam, Indexable Insert Drill
Item #: 12327490
Brand: Allied Machine and Engineering
Model #: D4050687I-100F
| Product Specifications | |
|---|---|
| Drill Style | D405 |
| Drill Diameter (mm) | 17.46 |
| Drill Diameter (Decimal Inch) | 0.6870 |
| Maximum Drill Depth (Decimal Inch) | 2.7480 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.6870 |
| Maximum Drill Diameter (mm) | 17.46 |
| Overall Length/Projection (Decimal Inch) | 5.7280 |
| Insert Compatibility | 4T-05T203 |
| Body Length (Decimal Inch) | 3.6020 |
| Shank Length (Decimal Inch) | 2.1260 |
| Collar Diameter (Decimal Inch) | 1.2600 |
| Series | 4Tex |
