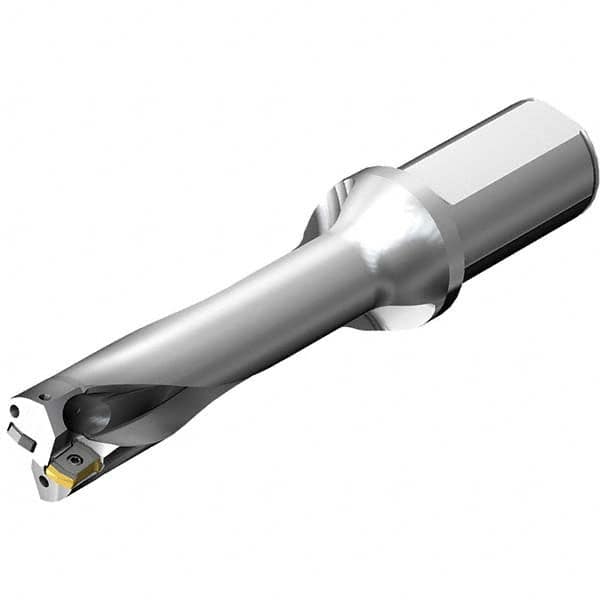

Sandvik Coromant - Indexable Insert Drills Drill Style: DS20 Drill Diameter (Decimal Inch): 1.1870
Item #: 13324843
Brand: Sandvik Coromant
Model #: 7548892
Product Specifications
Indexable Insert Drills; Drill Style: DS20 ; Drill Diameter (Decimal Inch): 1.1870 ; Maximum Drill Depth (Decimal Inch): 4.7480 ; Shank Type: Straight Shank ; Shank Diameter (Inch): 1-1/4 ; Cutting Direction: Right Hand
| Drill Style | DS20 |
| Drill Diameter (Decimal Inch) | 1.1870 |
| Maximum Drill Depth (Decimal Inch) | 4.7480 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 8.2252 |
| Insert Compatibility | DS20-0407-C |
| Body Length (Decimal Inch) | 4.8900 |
| Shank Length (mm) | 60.83 |
| Series | CoroDrill DS20 |
