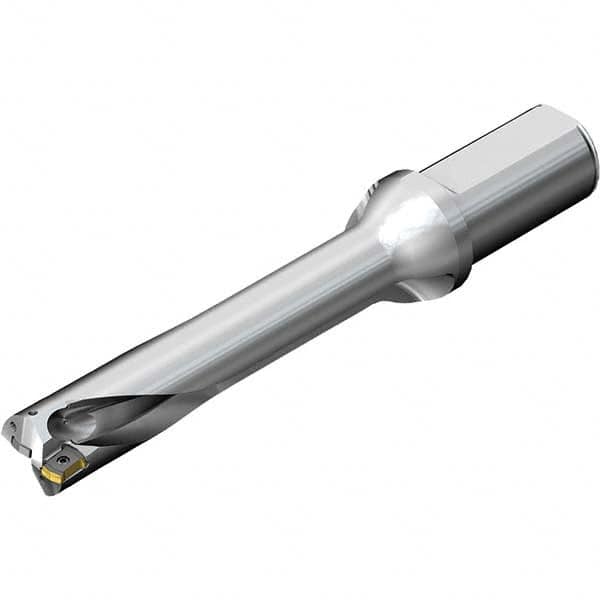

Sandvik Coromant - 182.5mm Max Drill Depth, 5xD, 36.5mm Diam, Indexable Insert Drill
Item #: 14846141
Brand: Sandvik Coromant
Model #: 7548933
| Product Specifications | |
|---|---|
| Drill Style | DS20..LXxx-05 |
| Drill Diameter (mm) | 36.50 |
| Maximum Drill Depth (mm) | 182.50 |
| Shank Type | Straight |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 11.2629 |
| Insert Compatibility | DS20-0508-C |
| Body Length (Decimal Inch) | 7.3390 |
| Series | CoroDrill DS20 |
