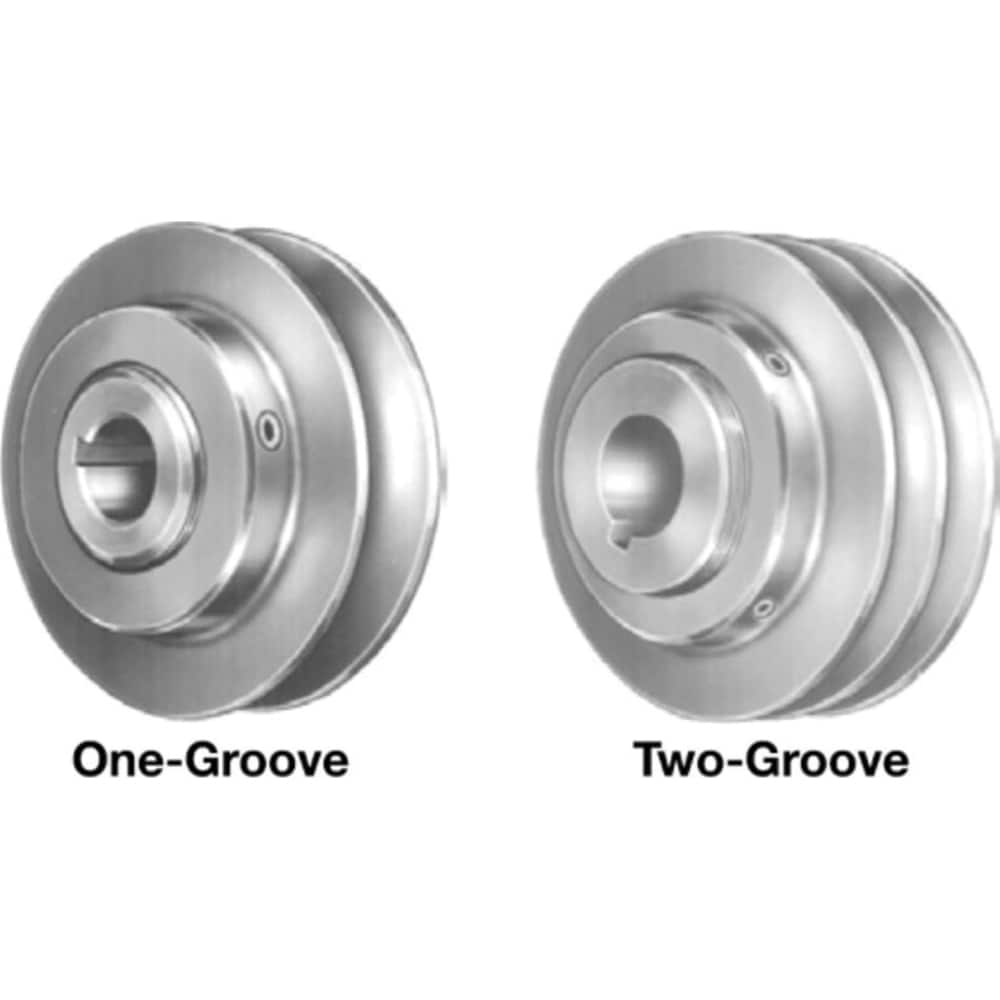

Gates - Variable Pitched Sheaves SheaveType: 1 Number of Grooves: 1
Item #: 94892460
Brand: Gates
Model #: 78101308
Product Specifications
Variable Pitched Sheaves; SheaveType: 1 ; Number of Grooves: 1 ; Inside Diameter (Inch): 1/2 ; Outside Diameter (Decimal Inch): 3.1500 ; Belt Section: 3L, 4L, A, 5L, B ; Maximum Face Width: 1 (Inch)
| SheaveType | 1 |
| Number of Grooves | 1 |
| Inside Diameter (Inch) | 1/2 |
| Outside Diameter (Decimal Inch) | 3.1500 |
| Belt Section | 3L, 4L, A, 5L, B |
| Maximum Face Width (Inch) | 1 |
| Minimum Face Width (Inch) | 21/32 |
| Sheave Thickness (Inch) | 1-7/8 |
| Thickness of Side Groove (Inch) | 0 |
| Minimum Pitch Diameter of Belt Type 3L (Decimal Inch) | 1.70 |
| Maximum Pitch Diameter of Belt Type 3L (Decimal Inch) | 2.50 |
| Maximum Pitch Diameter of Belt Type 4L or A (Decimal Inch) | 2.90 |
| Minimum Pitch Diameter of Belt Type 4L or A (Decimal Inch) | 1.90 |
| Maximum Pitch Diameter of Belt Type 5L or B (Decimal Inch) | 3.20 |
| Minimum Pitch Diameter of Belt Type 5L or B (Decimal Inch) | 2.40 |
| Minimum Open Turns for 5L or B Belts | 1 |
| Maximum Open Turns for 4L or A Belts | 5 |
| Maximum Open Turns for 5L or B Belts | 5 |
| PSC Code | 3020 |
