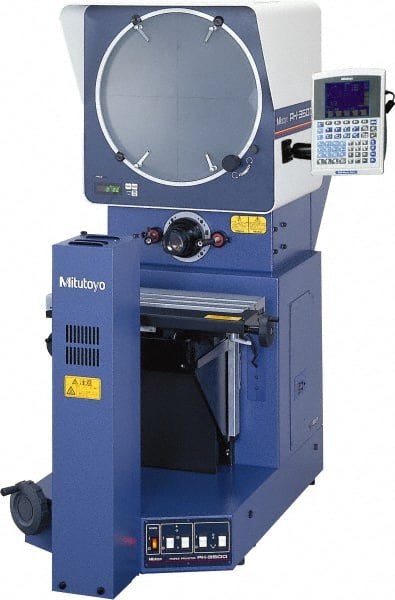

Mitutoyo - Optical Comparators & Profile Projectors Orientation: Vertical Magnification: 10x
Item #: 92229301
Brand: Mitutoyo
Model #: 64PKA088A
Features and Benefits
Vertical comparators or projectors are commonly used with softer, smaller or more flexible parts that can lay flat on a glass table. The path of the light is projected vertically onto the workpiece.
Product Specifications
Optical Comparators & Profile Projectors; Orientation: Vertical ; Magnification: 10x ; Screen Diameter (Decimal Inch): 14.0000 ; X-Axis Stage Travel Range (Decimal Inch): 10.0000 ; Y-Axis Stage Travel Range (Decimal Inch): 6.0000 ; Magnification Accuracy (Surface Illumination): 0.15%
| Orientation | Vertical |
| Magnification | 10x |
| Screen Diameter (Decimal Inch) | 14.0000 |
| X-Axis Stage Travel Range (Decimal Inch) | 10.0000 |
| Y-Axis Stage Travel Range (Decimal Inch) | 6.0000 |
| Magnification Accuracy (Surface Illumination) | 0.15% |
| Magnification Accuracy (Contour Illumination) | 0.1% |
| Stage Length (Decimal Inch) | 17.7000 |
| Stage Width (Decimal Inch) | 7.7000 |
| Overall Length (mm) | 1138.00 |
| Overall Length (Decimal Inch) | 44.8000 |
| Overall Width (mm) | 460.00 |
| Overall Width (Decimal Inch) | 18.1000 |
| Light Source | 150W/24V Halogen Bulb |
| Overall Height (mm) | 1155.70 |
| Lens Included | Yes |
