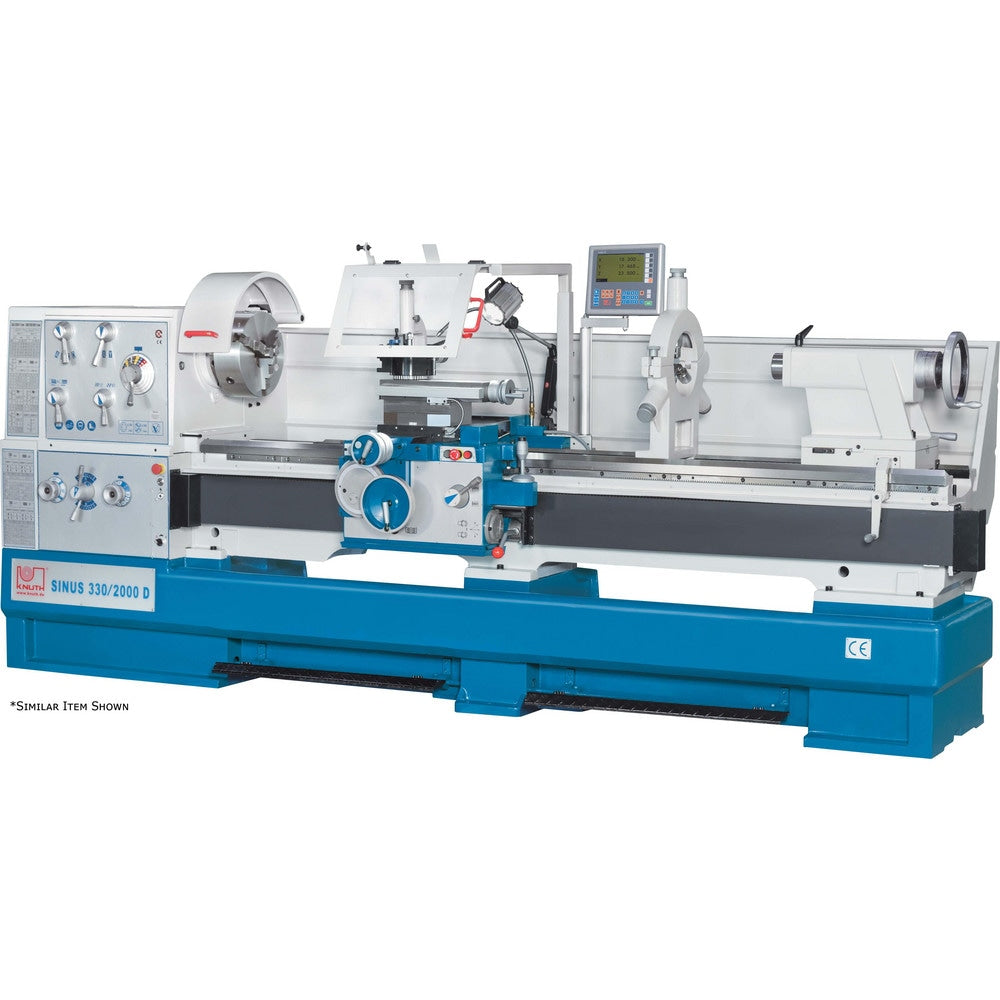

Engine Lathe: Three Phase, 460.00V, 10.1 hp, 16mm, Geared Head
Item #: 38976437
Brand: Knuth
Model #: 300015
Product Specifications
| Horse Power | 10.1 |
| Phase | Three |
| Spindle Speed Control | Geared Head |
| Bed Width | 16 |
| Distance Between Centers | 59 |
| Cross Slide Travel | 9 |
| Gap Length | 13 |
| Swing | 31 |
| Spindle Bore Diameter | 4.1 |
| Minimum Spindle Speed | 25 |
| Spindle Nose Designation | D1-8 |
| Voltage | 460.00 |
| Maximum Spindle Speed | 1600 |
| Overall Height | 76 |
| Overall Depth | 45 |
| Overall Length | 128.00 |
| Number of Inch Threads | 54 |
| Minimum Metric Pitch | 0.45 |
| Tailstock Travel | 9 |
| UNSPSC Code | 23242300 |
| Maximum Threads Per Inch | 80 |
| Maximum Longitudinal Feed Per Revolution | 0.05827 |
| Minimum Cross Feed Rate Per Revolution | 0.00087 |
| Maximum Cross Feed Rate Per Revolution | 0.02913 |
| Swing Over Gap | 41 |
