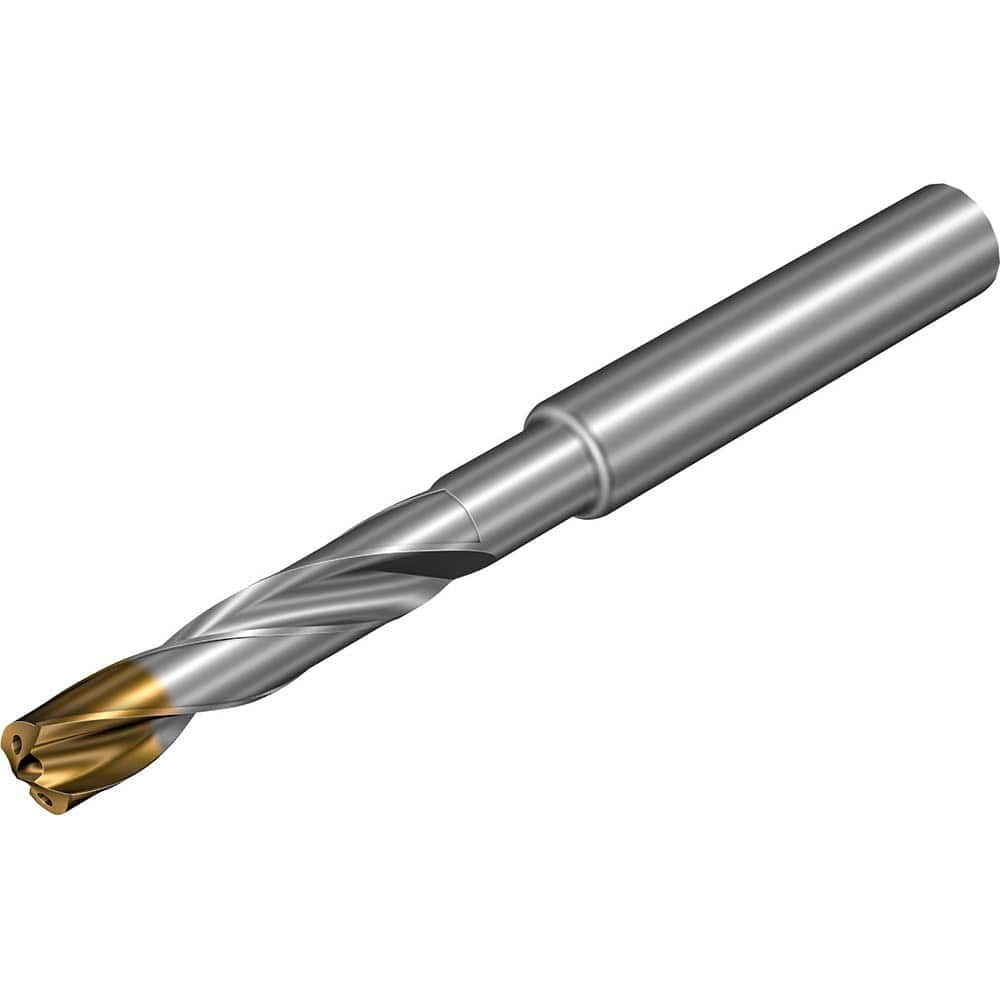

Sandvik Coromant - Taper Length Drill Bits; Drill Bit Size (mm): 9.13 ; Drill Bit Size (Decimal Inch): 0.3594 ; Drill Point Angle: 140 ; Drill Bit Material: Solid Carbide ; Drill Bit Finish/Coating: TiAlSiN/TiSiN ; Flute Type: Spiral
Item #: 20143145
Brand: Sandvik Coromant
Model #: 8018072
Product Specifications
Taper Length Drill Bits; Drill Bit Size (mm): 9.13 ; Drill Bit Size (Decimal Inch): 0.3594 ; Drill Point Angle: 140 ; Drill Bit Material: Solid Carbide ; Drill Bit Finish/Coating: TiAlSiN/TiSiN ; Flute Type: Spiral
| Drill Bit Size (mm) | 9.13 |
| Drill Bit Size (Decimal Inch) | 0.3594 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlSiN/TiSiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | Yes |
| Flute Length (mm) | 106.00 |
| Overall Length (mm) | 152.0000 |
| Shank Diameter (mm) | 10.0000 |
| Flute Length x Diameter Ratio | 8xD |
| Maximum Drilling Depth (mm) | 74.70 |
| Drill Point Length (mm) | 1.66 |
| Series/List | CoroDrill 860 |
| Drill Bit Grade | X1BM |
