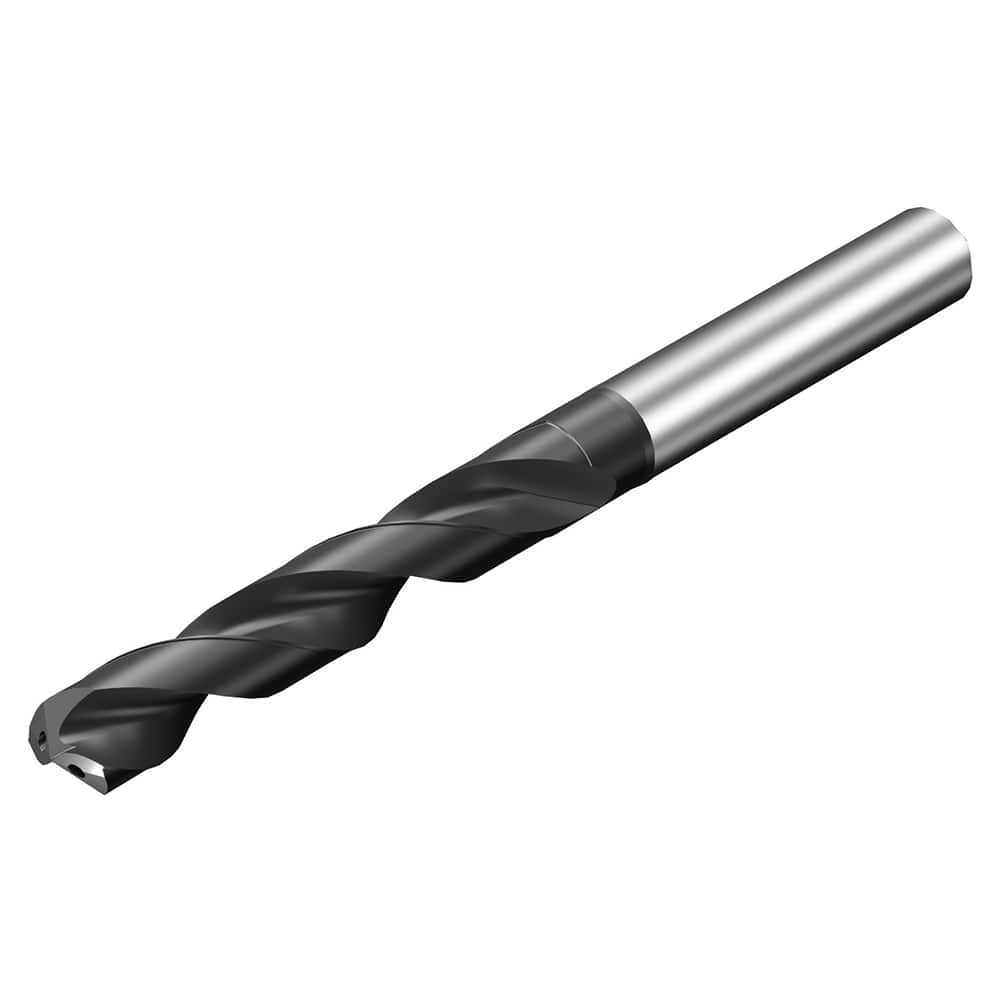

Sandvik Coromant - Screw Machine Length Drill Bits; Drill Bit Size (Decimal Inch): 0.2992 ; Drill Bit Size (mm): 7.60 ; Drill Point Angle: 140 ; Drill Bit Material: Solid Carbide ; Drill Bit Finish/Coating: AlTiN ; Flute Type: Spiral
Item #: 20143152
Brand: Sandvik Coromant
Model #: 8010674
Product Specifications
Screw Machine Length Drill Bits; Drill Bit Size (Decimal Inch): 0.2992 ; Drill Bit Size (mm): 7.60 ; Drill Point Angle: 140 ; Drill Bit Material: Solid Carbide ; Drill Bit Finish/Coating: AlTiN ; Flute Type: Spiral
| Drill Bit Size (Decimal Inch) | 0.2992 |
| Drill Bit Size (mm) | 7.60 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | AlTiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Overall Length (mm) | 79.0000 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (mm) | 8.0000 |
| Specification Designation | ANSI; ISO |
| Maximum Drilling Depth (mm) | 24.00 |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 1.38 |
| Material Grade | 1210 |
| Series/List | CoroDrill 860 |
