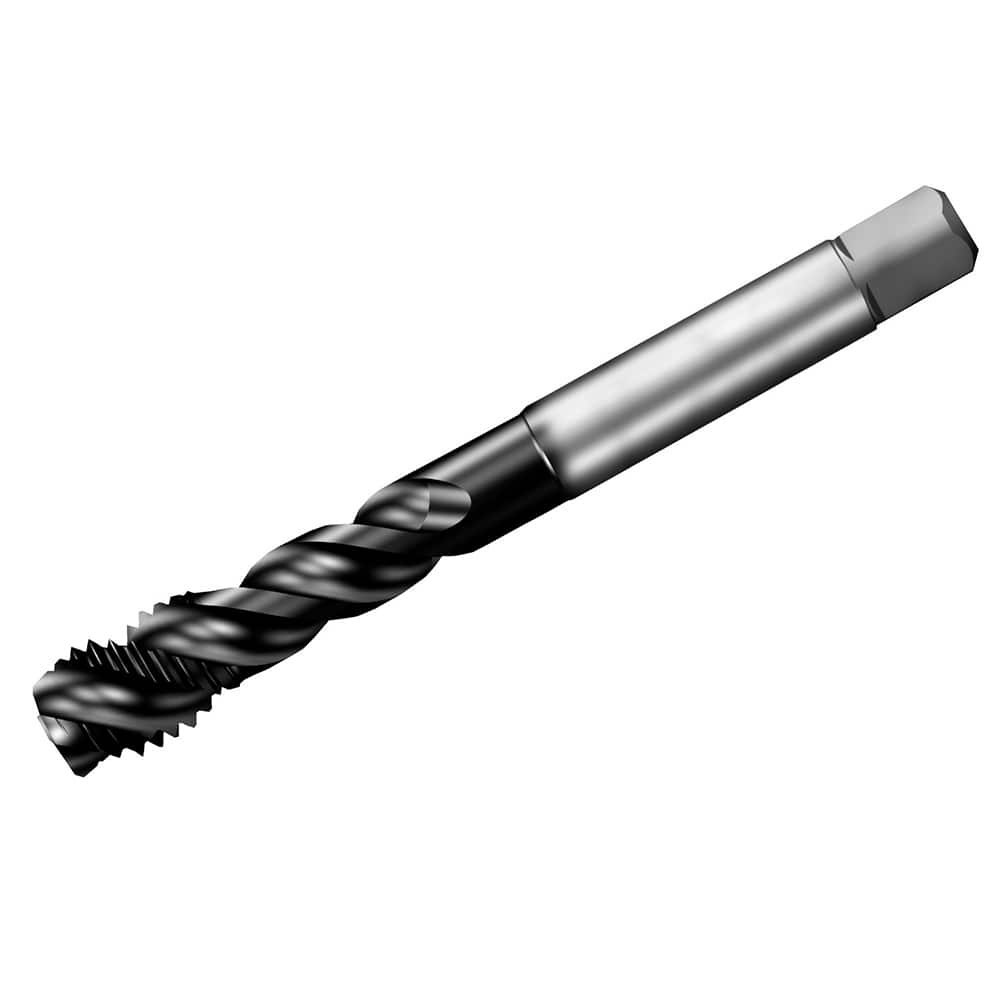

Sandvik Coromant - Spiral Flute Taps; Thread Size (mm): M12x1.50 ; Chamfer: Semi-Bottoming ; Class of Fit: 6HX ; Number of Flutes: 3 ; Material: HSS-E-PM ; Finish/Coating: TiAlN
Item #: 20143806
Brand: Sandvik Coromant
Model #: 8056608
Product Specifications
Spiral Flute Taps; Thread Size (mm): M12x1.50 ; Chamfer: Semi-Bottoming ; Class of Fit: 6HX ; Number of Flutes: 3 ; Material: HSS-E-PM ; Finish/Coating: TiAlN
| Thread Size (mm) | M12x1.50 |
| Chamfer | Semi-Bottoming |
| Class of Fit | 6HX |
| Number of Flutes | 3 |
| Material | HSS-E-PM |
| Finish/Coating | TiAlN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (mm) | 82.0000 |
| Helix Angle | 48.00 |
| Helix Angle Range | 15 to 50 |
| Thread Standard | JIS B 4436 |
| Material Grade | P1PM |
| Thread Length (mm) | 13.000 |
| Flute Type | Spiral |
| Series/List | T300 |
| Tapping Depth (mm) | 40.00 |
| Shank Diameter (mm) | 9.0000 |
| Material Application | P |
