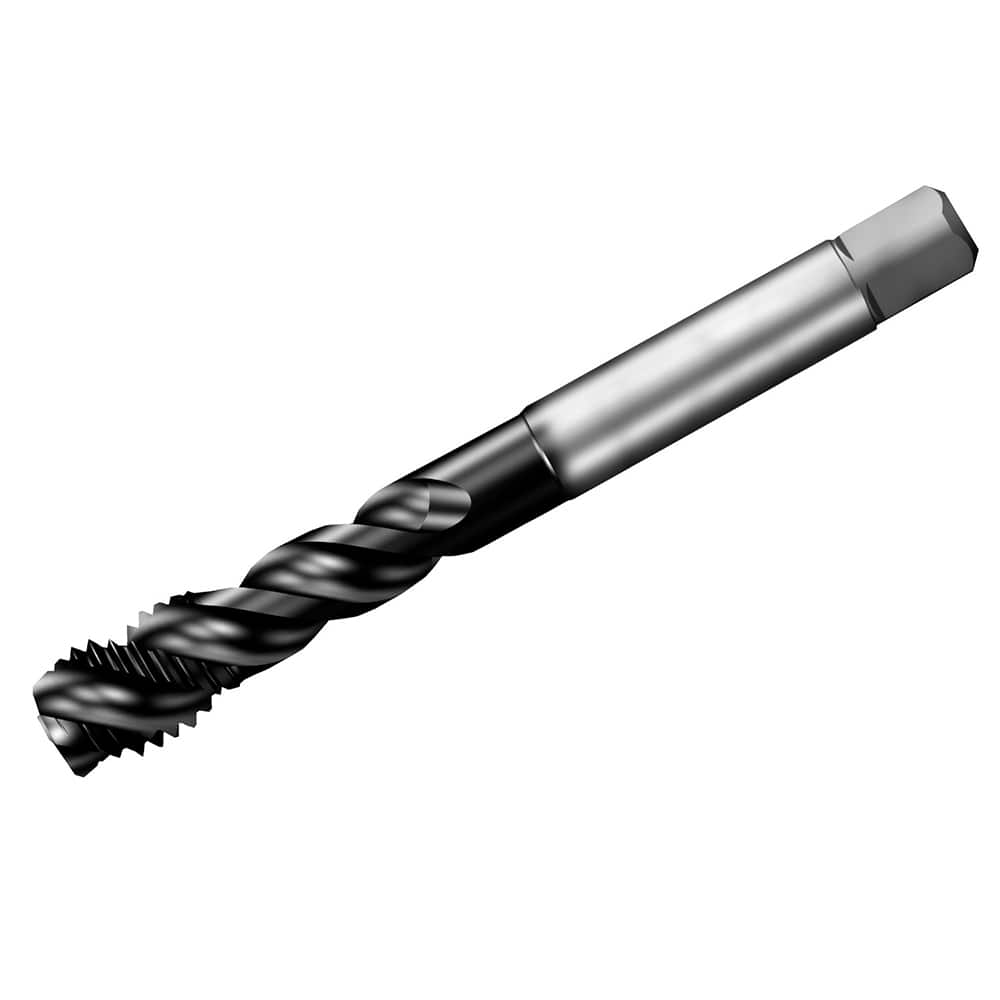

Sandvik Coromant - Spiral Flute Taps; Thread Size (Inch): 1-8 ; Chamfer: Semi-Bottoming ; Class of Fit: 2BX ; Number of Flutes: 4 ; Material: HSS-E-PM ; Finish/Coating: TiAlN
Item #: 20143848
Brand: Sandvik Coromant
Model #: 8055756
Product Specifications
Spiral Flute Taps; Thread Size (Inch): 1-8 ; Chamfer: Semi-Bottoming ; Class of Fit: 2BX ; Number of Flutes: 4 ; Material: HSS-E-PM ; Finish/Coating: TiAlN
| Thread Size (Inch) | 1-8 |
| Chamfer | Semi-Bottoming |
| Class of Fit | 2BX |
| Number of Flutes | 4 |
| Material | HSS-E-PM |
| Finish/Coating | TiAlN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | Through Coolant |
| Overall Length (mm) | 160.0000 |
| Helix Angle | 48.00 |
| Helix Angle Range | 15 to 50 |
| Thread Standard | DIN/ANSI |
| Material Grade | P1PM |
| Thread Length (mm) | 30.000 |
| Flute Type | Spiral |
| Series/List | T300 |
| Tapping Depth (mm) | 86.00 |
| Shank Diameter (mm) | 20.0000 |
| Material Application | P |
