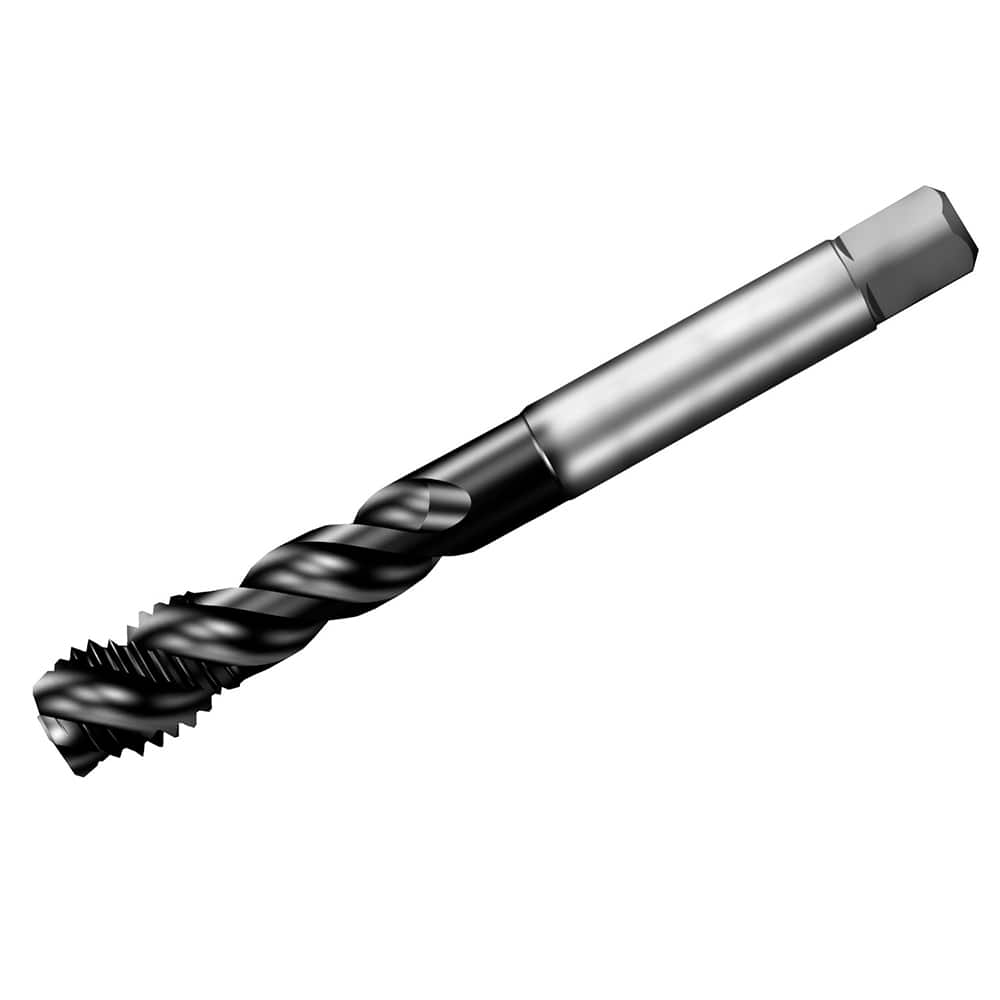

Spiral Flute Tap: M18 x 1.00, DIN 374, 4 Flute, Semi-Bottoming, 6HX Class of Fit, High Speed Steel-E-PM, TiAlN Finish Right Hand Flute, Right Hand Thread, Series T300
Item #: 20144101
Brand: Sandvik Coromant
Model #: 8056251
Product Specifications
| Material | High Speed Steel-E-PM |
| Coating/Finish | TiAlN |
| Thread Size (mm) | M18 x 1.00 |
| Thread Standard | DIN 374 |
| Thread Direction | Right Hand |
| Thread Length (Mm) ( - 3 Decimals) | 17.00 |
| Overall Length (mm) | 110.00 |
| Chamfer | Semi-Bottoming |
| Flute Direction | Right Hand |
| Material Grade | P1PM |
| Helix Angle | 48 |
| Shank Diameter (mm) | 14.00 |
| Tapping Depth (mm) | 58.00 |
| Material Application | P |
| Series | T300 |
| Helix Angle Range | 15 to 50 |
| Coolant Through | No |
| Number Of Flutes | 4 |
| Class Of Fit | 6HX |
