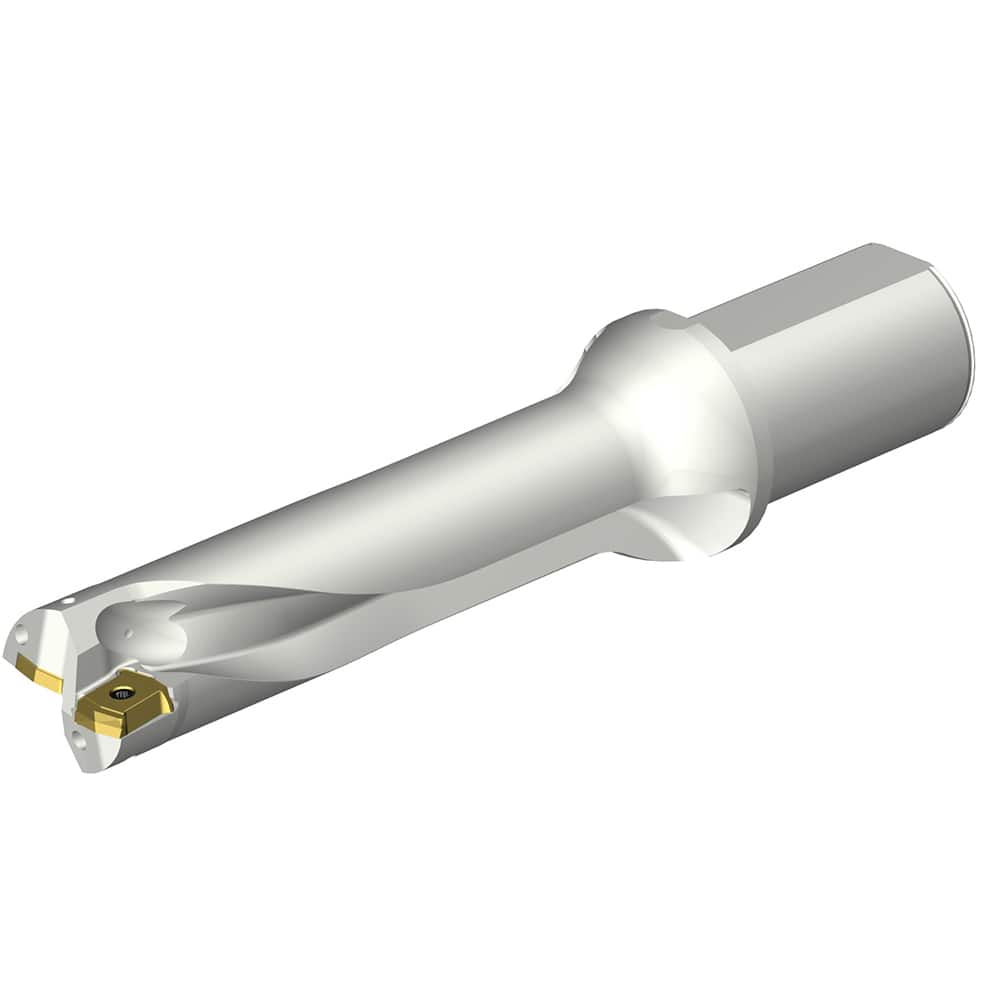

Sandvik Coromant - Indexable Insert Drills; Drill Style: DS20 ; Drill Diameter (mm): 42.00 ; Drill Diameter (Decimal Inch): 1.6535 ; Maximum Drill Depth (mm): 169.28 ; Shank Type: Straight with Flat ; Shank Diameter (mm): 50.0000
Item #: 20144168
Brand: Sandvik Coromant
Model #: 7548968
Product Specifications
Indexable Insert Drills; Drill Style: DS20 ; Drill Diameter (mm): 42.00 ; Drill Diameter (Decimal Inch): 1.6535 ; Maximum Drill Depth (mm): 169.28 ; Shank Type: Straight with Flat ; Shank Diameter (mm): 50.0000
| Drill Style | DS20 |
| Drill Diameter (mm) | 42.00 |
| Drill Diameter (Decimal Inch) | 1.6535 |
| Maximum Drill Depth (mm) | 169.28 |
| Shank Type | Straight with Flat |
| Shank Diameter (mm) | 50.0000 |
| Cutting Direction | Right Hand |
| Through Coolant | Yes |
| Drill Depth by Diameter Ratio | 4xD |
| Maximum Drill Diameter (mm) | 42.00 |
| Overall Length/Projection (mm) | 290.00 |
| Insert Compatibility | DS20-0608 |
| Flute Length (mm) | 208.72 |
| Body Length (mm) | 173.000 |
| Series | CoroDrill DS20 |
| Material | Carbide |
